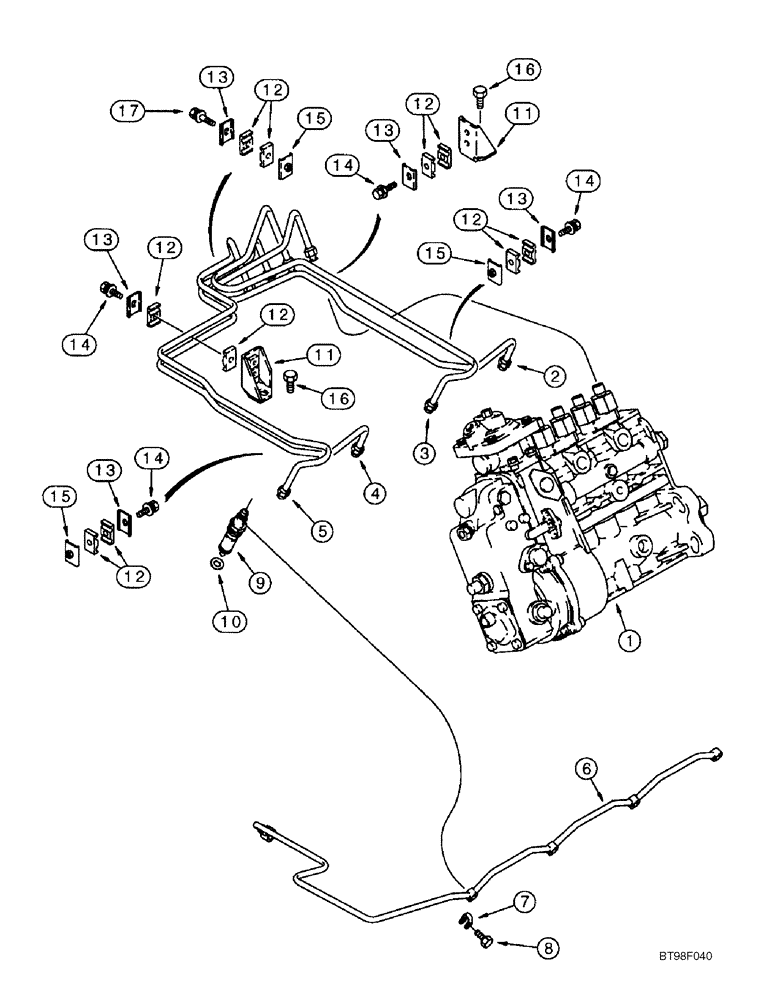

Запчасти Case 688G (3-14) - FUEL INJECTION SYSTEM, 4-390 AND 4T-390 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM

*

MODELS WITH ENGINE NUMBER 327008A2, 327010A2, OR 87413347

1шт.

1

J928665

PUMP, FUEL INJECTION

PUMP, INJECTION

1шт.

*

327010A2 4T-390 Emissions Certified Engine

1шт.

*

See Figure 3-20

1шт.

1

JR928665

REMAN-INJECTION PUMP

Remanufactured INJECTION PUMP

1шт.

1

JC928665

CORE-INJECTION PUMP

Return Number

1шт.

1a

J934890

PUMP, FUEL INJECTION

PUMP, INJECTION

1шт.

*

327008A2 4-390 Emission Certified Engine

1шт.

*

See Figure 3-18

1шт.

*

Not Illustrated

1шт.

1b

87413601

PUMP, FUEL INJECTION

PUMP, INJECTION

1шт.

*

87413347 4T-390 Emission Certified Engine

1шт.

*

Component Parts Not Available At Time of Printing

1шт.

2

J932157

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 750 mm L

No. 1 cylinder

1шт.

3

J932158

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 750 mm L

No. 2 cylinder

1шт.

4

J933501

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 750 mm L

No. 3 cylinder

1шт.

5

J933502

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 750 mm L

No. 4 cylinder

1шт.

6

J284579

TUBE

1шт.

*

Replaces J929558

1шт.

7

J903380

SEAL

4шт.

8

J905307

BANJO BOLT,M6 x 1 x 14.30mm

4шт.

9

REF

INSTRUCTION

Nozzle Assy, Fuel Injection

4шт.

*

See Figures 3-22 and 3-24 For Correct Assembly and Parts List

1шт.

10

J937142

SEAL,7mm ID x 15mm OD x 1.5mm Thk

4шт.

*

Replaces J906659

1шт.

10a

J920414

BRACE

2шт.

*

Not Illustrated

1шт.

11

J917777

BRACE

2шт.

12

J917746

CLAMP

12шт.

13

CURJ904711

CLAMP

5шт.

14

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

4шт.

15

J917717

BRACE

3шт.

16

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

2шт.

17

J920855

CAPTIVE WASHER SCREW

1шт.
