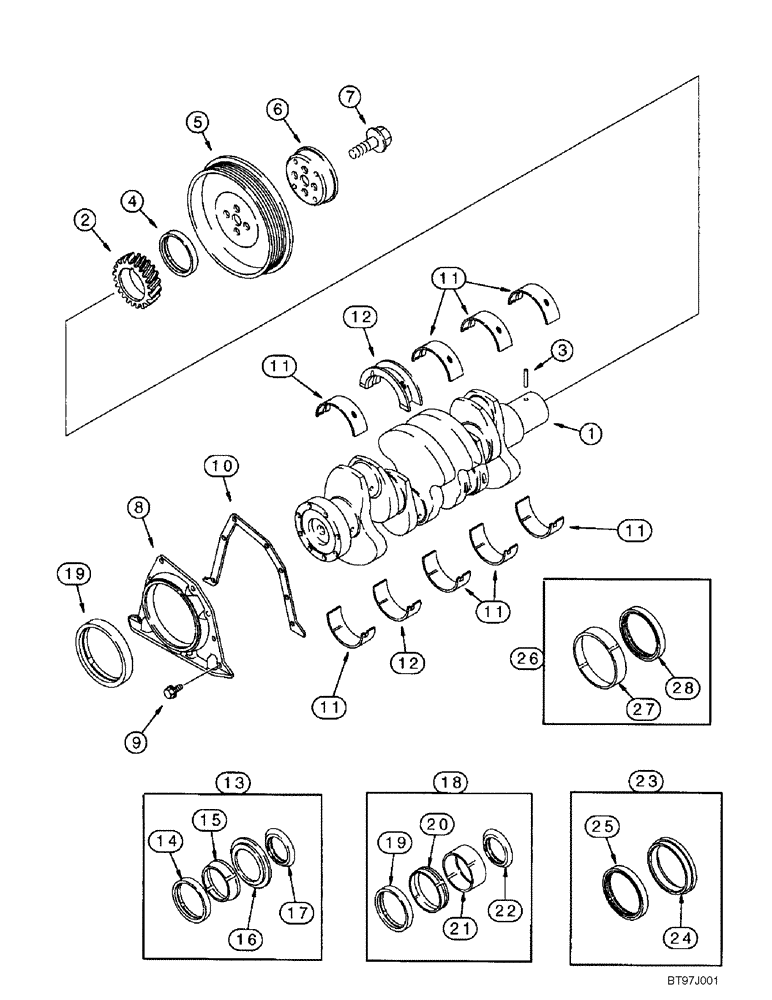

Запчасти Case 688G (2-60) - CRANKSHAFT, 4-390 AND 4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

JR908031

CRANKCASE

1шт.

Remanufactured

1шт.

North America Only

1шт.

J929036R

REMAN-CRANKSHAFT

686G, 686GXR BOTH SERIES-2, EMISSIONS (5/99-), 686G EMISSIONS (6/98-), 688G TIER 2, EMISSIONS (5/99-), Reman for New P/N JR908031

1шт.

J929036C

CORE-CRANKSHAFT

Return Number

1шт.

JC908031

CORE-CRANKSHAFT

1шт.

Return Number

1шт.

1

J908031

CRANKSHAFT

1шт.

Incl. 1, 2

1шт.

J929036R

REMAN-CRANKSHAFT

686G, 686GXR BOTH SERIES 2 EMISSIONS (5/99-), 686G EMISSIONS (6/98-), 688G TIER 2 EMISSIONS (5/99-), Reman for New P/N J908031

1шт.

J929036C

CORE-CRANKSHAFT

Return Number

1шт.

2

J929027

PINION

Gear

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

Dowel

1шт.

4

NSS

NOT SOLD SEPARAT

Seal

1шт.

Order A77889, REF 13

1шт.

5

J914494

PULLEY,181.25mm OD

1шт.

6

J903829

ADAPTER

1шт.

7

J903857

BOLT,Hex, M12 x 1.25 x 36mm

4шт.

8

J936904

REAR COVER

1шт.

Replaces J921043

1шт.

9

87409160

SCREW,Hex, M6 x 1 x 16mm, Cl 10.9

6шт.

10

J938159

GASKET

1шт.

11

J804940

BEARING SET

4шт.

Standard

1шт.

4-390 Emissions Certifed Engine Only

1шт.

11

A77405

CRANKSHAFT BEARING

4шт.

Standard

1шт.

4T-390 Emissions Certifed Engine Only

1шт.

11

A77472

BEARING SET

4шт.

Undersize 0,25 mm

1шт.

11

A77474

BEARING SET

4шт.

Undersize 0,50 mm

1шт.

11

A77476

BEARING SET

4шт.

Undersize 0,75 mm

1шт.

11

A77478

BEARING SET

4шт.

Undersize 1,00 mm

1шт.

12

A77895

THRUST BEARING,KIT

1шт.

Standard

1шт.

4-390 Emissions Certified Engine Only

1шт.

12

A77896

BEARING SET

1шт.

Standard

1шт.

4T-390 Emissions Certifed Engine Only

1шт.

12

A77473

THRUST BEARING

1шт.

Undersize 0,25 mm

1шт.

12

A77475

THRUST BEARING

1шт.

Undersize 0,50 mm

1шт.

12

A77477

THRUST BEARING

1шт.

Undersize 0,75 mm

1шт.

12

A77479

THRUST BEARING

1шт.

Undersize 1,00 mm

1шт.

12

A77841

THRUST BEARING

1шт.

Undersize 0,50; Oversize Thrust 0,50

1шт.

12

A77840

THRUST BEARING

1шт.

Undersize 1,00; Oversize Thrust 1,00

1шт.

13

A77889

SEAL PACKAGE

Front

1шт.

Incl 14 - 17

1шт.

14

NSS

NOT SOLD SEPARAT

Seal

1шт.

15

NSS

NOT SOLD SEPARAT

Tool, Installation

1шт.

16

NSS

NOT SOLD SEPARAT

Tool, Installation

1шт.

17

NSS

NOT SOLD SEPARAT

Shield, Dust

1шт.

18

A77890

SEAL PACKAGE

Front, Includes Wear Sleeve

1шт.

Incl. 19 - 22

1шт.

19

NSS

NOT SOLD SEPARAT

Seal

1шт.

20

NSS

NOT SOLD SEPARAT

Sleeve, Wear

1шт.

21

NSS

NOT SOLD SEPARAT

Tool, Installation

1шт.

22

NSS

NOT SOLD SEPARAT

Shield, Dust

1шт.

23

J934486

SERVICE KIT

Rear

1шт.

Incl. 24, 25

1шт.

24

NSS

NOT SOLD SEPARAT

Tool, Installation

1шт.

25

NSS

NOT SOLD SEPARAT

Seal

1шт.

26

A77810

SERVICE KIT

Rear, Includes Wear Sleeve

1шт.

27

NSS

NOT SOLD SEPARAT

Sleeve, Wear

1шт.

28

NSS

NOT SOLD SEPARAT

Seal

1шт.
