Запчасти Case 688G (2-42) - CYLINDER HEAD COVERS, 4-390 AND 4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

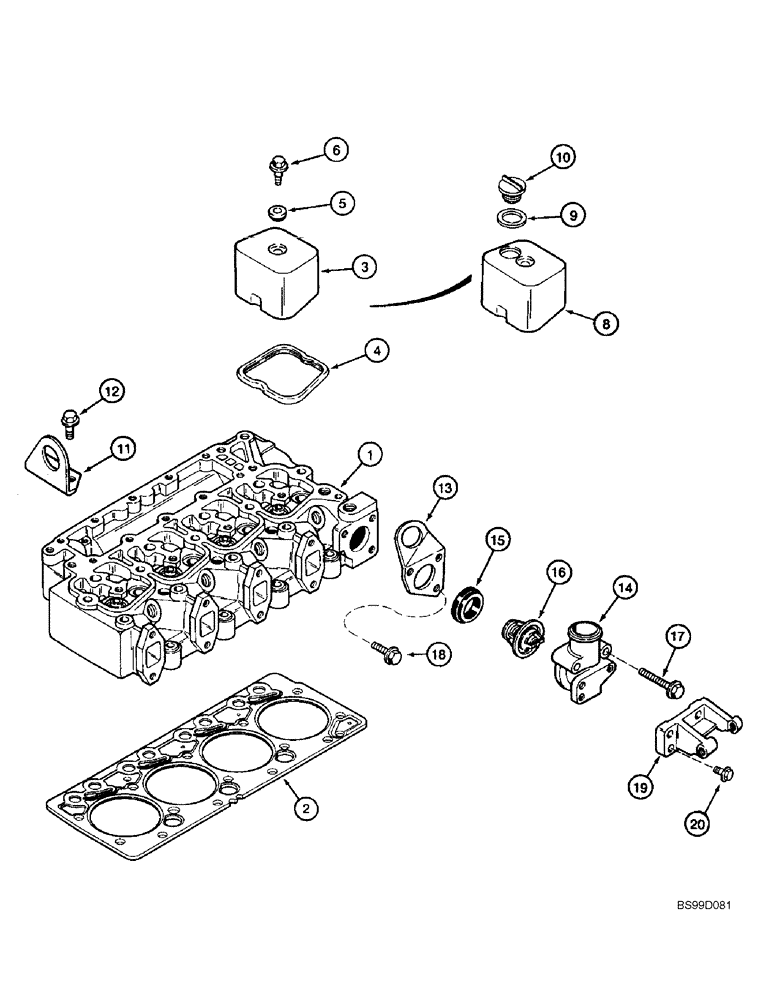

Схема запчастей Case 688G - (2-42) - CYLINDER HEAD COVERS, 4-390 AND 4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE
11
4
1
15
16
18
13
19
9
2
14
10
20
12
8
17
6
3
5

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

Cylinder Head

1шт.

See Figure 2-44 and 2-46 for correct cylinder head and parts list

1шт.

2

J283569

CYLINDER HEAD GASKET,2.42mm Thk

Standard

1шт.

2

J283333

CYLINDER HEAD GASKET,2.32mm Thk

Standard

1шт.

2

J283336

GASKET

2 notches, 0.25 mm thicker

1шт.

2

J283338

GASKET

3 notches, 0.50 mm thicker

1шт.

3

J928404

COVER

3шт.

4

J930906

GASKET

4шт.

5

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

4шт.

6

J907049

BOLT,Hex

4шт.

7

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

4шт.

If Used

1шт.

Not Illustrated

1шт.

8

J928405

COVER

COVER - rocker arm

1шт.

9

J936876

SEALING RING,30mm ID x 48mm OD x 2.8mm Thk

SEAL - oil fill cap

1шт.

Replaces J902363

1шт.

10

J901895

CAP

1шт.

11

J916794

SUPPORT

1шт.

12

844-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 8.8

M12 x 30; 10.9

2шт.

THERMOSTAT AND HOUSING

1шт.

13

J903757

BRACKET

1шт.

14

J285103

HOUSING

1шт.

Replaces J930703

1шт.

A77988

KIT

Thermostat

1шт.

Incl. 15, 16, 16A

1шт.

15

J933325

GASKET

1шт.

16

NSS

NOT SOLD SEPARAT

Thermostat

1шт.

16a

J925466

SEAL,Square, 3.9mm Thk x 55.6mm ID

1шт.

Not Illustrated

1шт.

17

845-8070

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

2шт.

18

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

1шт.

19

J287096

SUPPORT

1шт.

Replaces J923387

1шт.

Incl. 19A

1шт.

19a

838-5310

LOCK PIN,M3 x 10, Slotted

2шт.

20

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

3шт.
