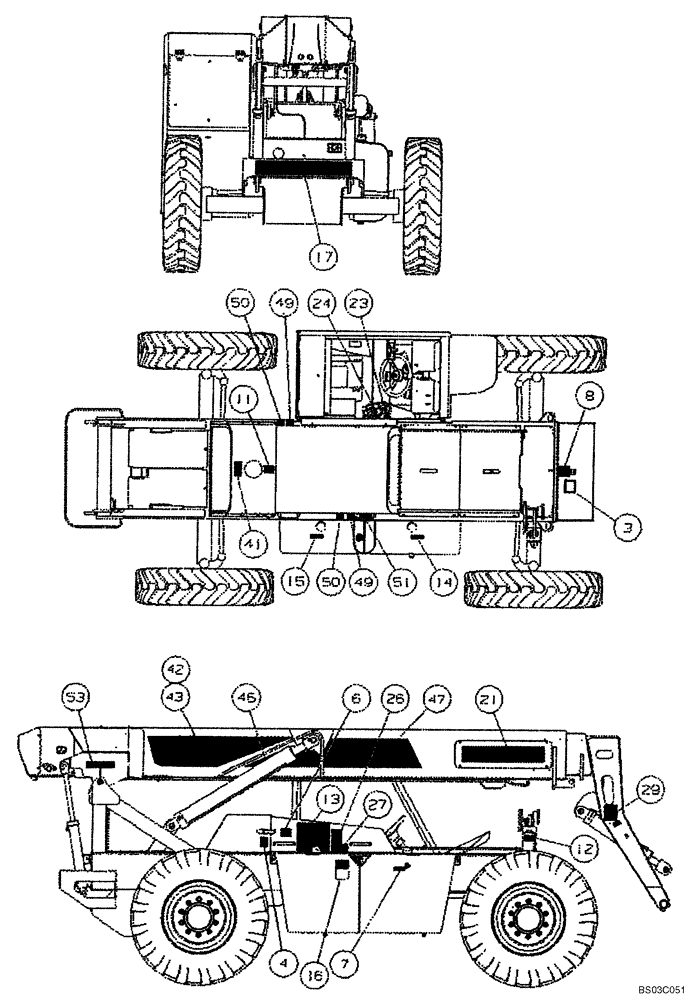

Запчасти Case 688G (9-54A) - DECALS, RIGHT-HAND SIDE (SERIES 2 ASN 686GXR JFE0001847; 688G JFE0003612) (09) - CHASSIS/ATTACHMENTS

3

309579A1

DECAL

Warning, Falling Object

1шт.

4

317371A1

DECAL

Warning, Rotating Fan and Belt

1шт.

6

317368A1

DECAL

Operation Warning

1шт.

7

313410A1

DECAL

Hydraulic Oil Level

1шт.

8

309577A1

DECAL

Crush Warning

1шт.

11

317369A1

DECAL

Warning, Pressure Hazard

1шт.

12

310374A1

DECAL

Frame Tipping

1шт.

13

87416680

DECAL

Lube Chart

1шт.

For 686GXR, Series 2

1шт.

13

87416686

DECAL

Lube Chart

1шт.

For 688G, Series 2

1шт.

14

310047A1

DECAL

Hydraulic Oil

1шт.

15

310015A1

DECAL

Fuel

1шт.

16

317023A1

DECAL

Emergency Exit

1шт.

17

357343A1

DECAL

Rear Logo

1шт.

21

448469A1

DECAL

Model Identification

1шт.

For 686GXR, Series 2

1шт.

21

448473A1

DECAL

Model Identification

1шт.

For 686G, Series 2

1шт.

23

317359A1

DECAL

Front Controller

1шт.

24

317360A1

DECAL

Rear Controller

1шт.

26

360305A1

DECAL

Operation Warning

1шт.

27

360932A1

DECAL

Chart, Tire Inflation

1шт.

For 686GXR Series 2

1шт.

27

87416687

DECAL

Chart, Tire Inflation

1шт.

For 688G, Series 2

1шт.

29

309280A1

DECAL

Carriage Shift

1шт.

41

317706A1

DECAL

Procedure, Radiator Fill

1шт.

42

448470A1

DECAL

Case Reflective

1шт.

43

448960A1

DECAL

Striping, Right Hand

1шт.

46

448959A1

DECAL

Striping, Right Hand Center Boom

1шт.

For 686GXR Series 2

1шт.

46

448965A1

DECAL

Striping, Right Hand Center Boom

1шт.

For 688G Series 2

1шт.

47

448467A1

DECAL

Striping, Right Hand, Front Boom

1шт.

For 686GXR Series 2

1шт.

47

448471A1

DECAL

Striping, Right Hand, Front Boom

1шт.

For 688G Series 2

1шт.

49

357345A1

DECAL

Starter Bypass

2шт.

50

87416682

DECAL

Danger, Starting In Gear

2шт.

51

309599A1

DECAL

Unmetered Ether

1шт.

52

360933A1

DECAL

Crush Area

2шт.

Not Illustrated

1шт.

53

87416683

DECAL

Series 2

1шт.
