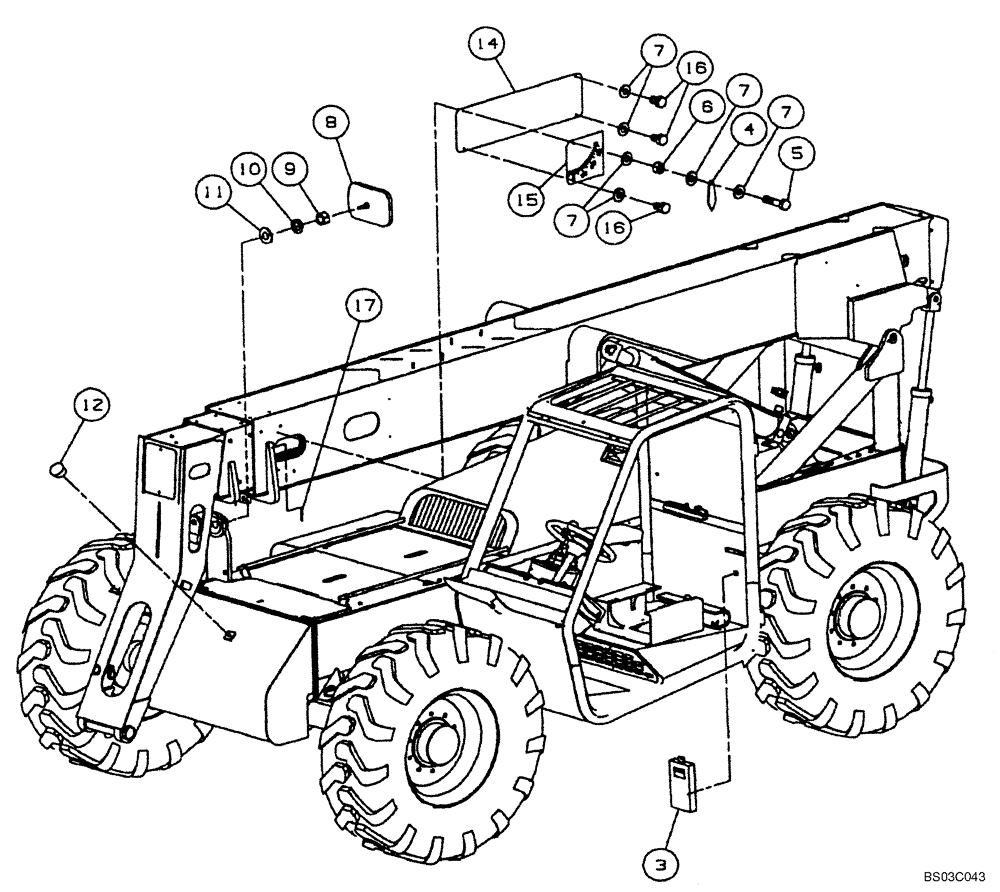

Запчасти Case 688G (9-48A) - MANUAL BOX, POINTER AND MIRROR (ASN 686GXR JFE0001847; 688G JFE0003612) (09) - CHASSIS/ATTACHMENTS

3

87419922

Case, Manual

1шт.

Includes Hardware

1шт.

4

317152A1

PLATE

1шт.

5

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

6

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

7

449889A1

WASHER

2шт.

8

310082A1

MIRROR

Rear View

1шт.

9

425-106

NUT,3/8"-16, Cl 5

1шт.

10

492-21038

LOCK WASHER,3/8"

3/8"

1шт.

11

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

1шт.

12

87419923

PLUG

Plug

1шт.

686GXR Models

1шт.

12

309999A1

PLUG

1шт.

688G Models

1шт.

14

87419924

COVER PLATE

Plate, Boom Side

2шт.

15

87419925

DECAL

Decal, Angle Of Boom

1шт.

686GXR Models

1шт.

15

366389A1

DECAL

Angle Of Boom

1шт.

688G Models

1шт.

16

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

7шт.

17

87419926

TAPE

Tape

1шт.
