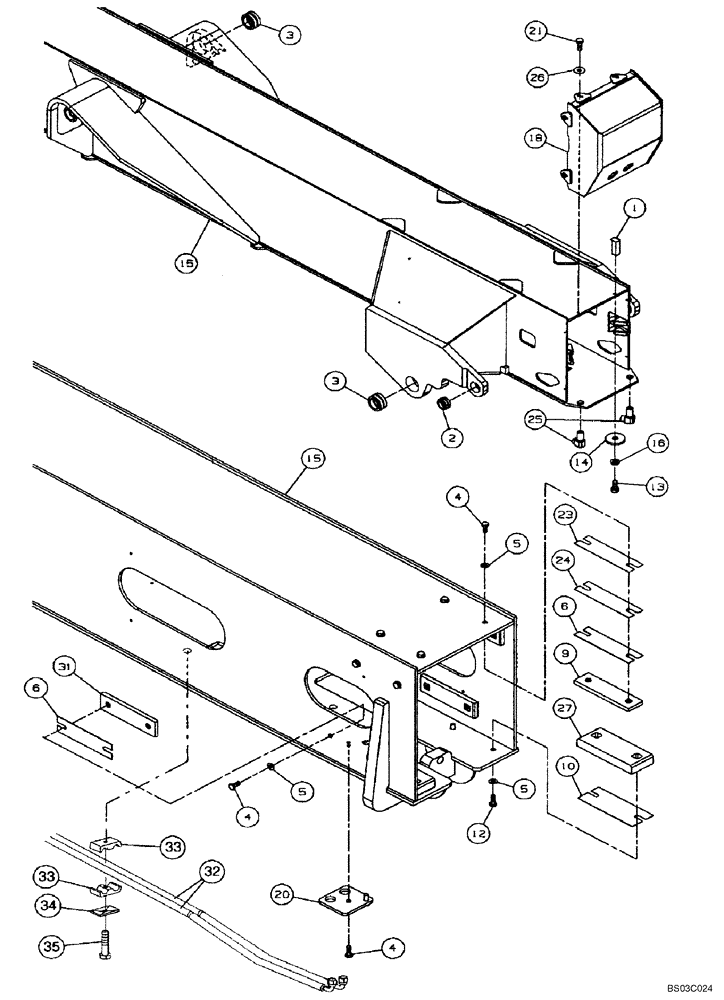

Запчасти Case 688G (9-32B) - OUTER BOOM SECT ASSY (ASN 686GXR JFE0001847; 688G JFE0003612) (09) - CHASSIS/ATTACHMENTS

1

314051A1

BLOCK

2шт.

2

316196A1

BUSHING

2шт.

3

316993A1

SPHERICAL BEARING

4шт.

4

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

14шт.

5

430112A1

SPECIAL WASHER

12шт.

6

317062A1

SHIM

6шт.

9

430356A1

WEAR PAD

2шт.

10

430357A1

PLATE

2шт.

12

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

13

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

2шт.

14

316960A1

WASHER

2шт.

15

87417778

BOOM EXTENSION

Boom, Section, Outer

1шт.

686GXR Series 2 (PIN JFE0001848 And After)

1шт.

15

87417777

BOOM EXTENSION

Boom, Section, Outer

1шт.

688G Series 2 (PIN JFE0003613 And After)

1шт.

16

492-11038

LOCK WASHER,3/8"

2шт.

18

317153A1

PLATE

1шт.

20

87417779

PLATE

Plate

1шт.

21

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

6шт.

23

317393A1

PLATE

2шт.

24

317414A1

PLATE

4шт.

25

366376A1

ADAPTER

2шт.

26

430360A1

WASHER

6шт.

27

430113A1

WEAR PAD

2шт.

31

363783A1

PAD

Wear

4шт.

32

87417780

TUBE

Tube

2шт.

33

87417781

CLAMP

Clamp

4шт.

34

87417782

PLATE

Plate, Cover

2шт.

35

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.
