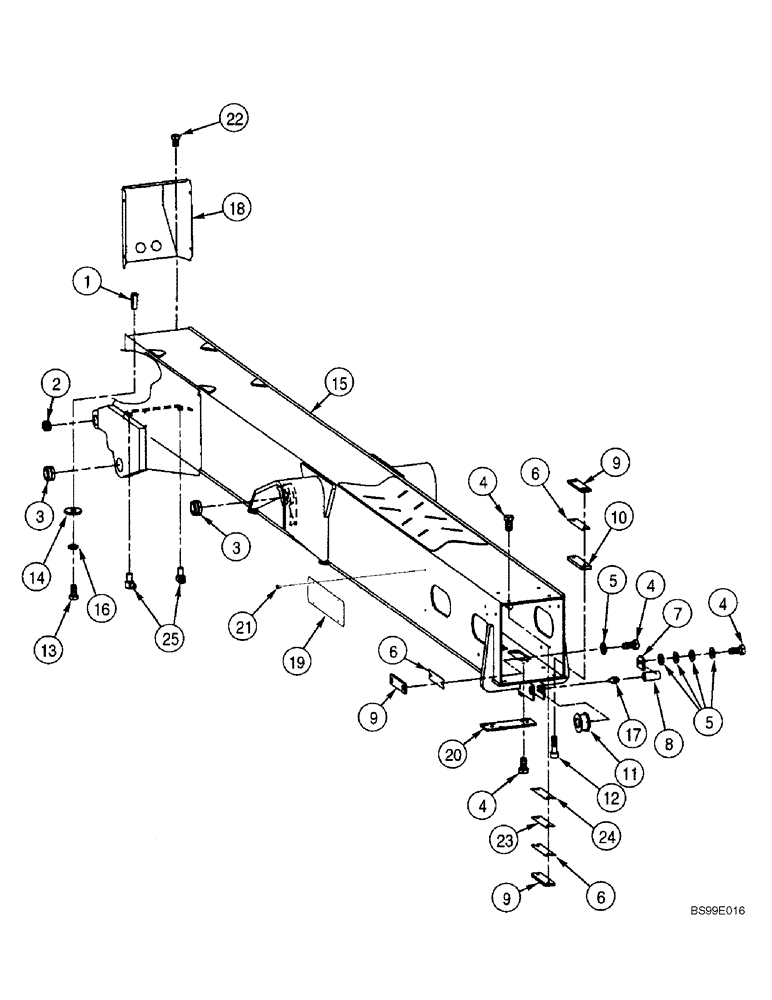

Запчасти Case 688G (9-32) - OUTER BOOM SECTION ASSY (BSN 686G JFE0000662; 686GXR JFE0001702) (09) - CHASSIS/ATTACHMENTS

1

314051A1

BLOCK

2шт.

2

316196A1

BUSHING

2шт.

3

316993A1

SPHERICAL BEARING

4шт.

4

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

17шт.

6

317062A1

SHIM

8шт.

7

317072A1

PLATE

1шт.

8

317070A1

PIN

1шт.

9

363783A1

PAD

Wear

8шт.

Replaces 317058A1

1шт.

10

317063A1

PLATE, SPACER

PLATE,SPACER

2шт.

11

317067A1

SLEEVE

1шт.

12

864-10035

HEX SOC SCREW,M10 x 35mm, Cl 8.8

M10 x 35

4шт.

13

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

2шт.

14

316960A1

WASHER

2шт.

15

326637A1

BOOM

Section, Outer

1шт.

686G Series 1 (Prior To PIN JFE0000662)

1шт.

15

317061A1

BOOM

Section, Outer

1шт.

686GXR Series 1 (Prior To PIN JFE0001640)

1шт.

16

492-11038

LOCK WASHER,3/8"

2шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

18

317153A1

PLATE

1шт.

19

326639A1

PLATE

Access

2шт.

20

317142A1

PLATE

1шт.

21

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

8шт.

22

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

6шт.

23

317393A1

PLATE

2шт.

24

317414A1

PLATE

5шт.

25

366376A1

ADAPTER

2шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

12шт.
