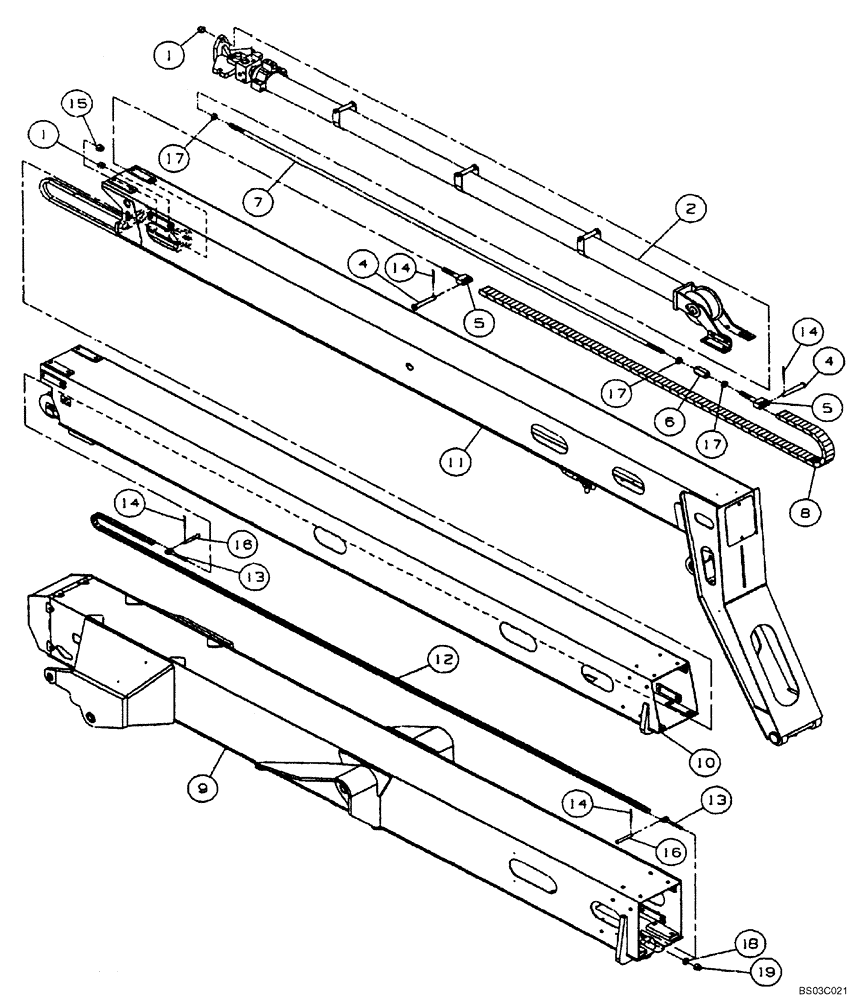

Запчасти Case 688G (9-30A) - BOOM ASSY & TELESCOPIC CROWD CYLINDER (ASN 686GXR JFE0001847; 688G JFE0003612) (09) - CHASSIS/ATTACHMENTS

1

131-1420

LOCK NUT,1"-12, GB

2шт.

2

REF

INSTRUCTION

Cylinder Assy, Telescopic Crowd

1шт.

4

317002A1

PIN

2шт.

See Figure 9-38

1шт.

5

317076A1

ANCHOR

2шт.

6

317084A1

NUT

1шт.

7

317069A1

ROD

Chain Anchor

1шт.

8

326801A1

CHAIN (CE)

Boom Extension

1шт.

9

REF

INSTRUCTION

Section Assy, Boom, Outer

1шт.

See Figure 9-32B

1шт.

10

REF

INSTRUCTION

Section Assy, Boom, Intermediate

1шт.

See Figure 9-34A

1шт.

11

REF

INSTRUCTION

Section Assy, Boom, Inner

1шт.

See Figure 9-36A

1шт.

12

87417820

CHAIN

Chain, Boom Retraction

1шт.

686GXR PIN JFE0001848 And After

1шт.

12

87417818

CHAIN

Boom Retraction

1шт.

688G PIN JFE0003613 And After

1шт.

13

87417819

ANCHOR

Anchor

2шт.

14

432-816

COTTER PIN,1/8" x 1"

4шт.

15

318040A1

LOCK NUT

2шт.

16

318021A1

PIN

2шт.

17

129-358

JAM NUT,Jam, 1"-12, G5

2шт.

18

314094A1

RING

1шт.

19

314087A1

NUT

1шт.
