(8-08) - BASIC HYDRAULIC CIRCUIT (ALL 688G MODELS)

Запчасти Case 688G (8-08) - BASIC HYDRAULIC CIRCUIT (ALL 688G MODELS) (08) - HYDRAULICS

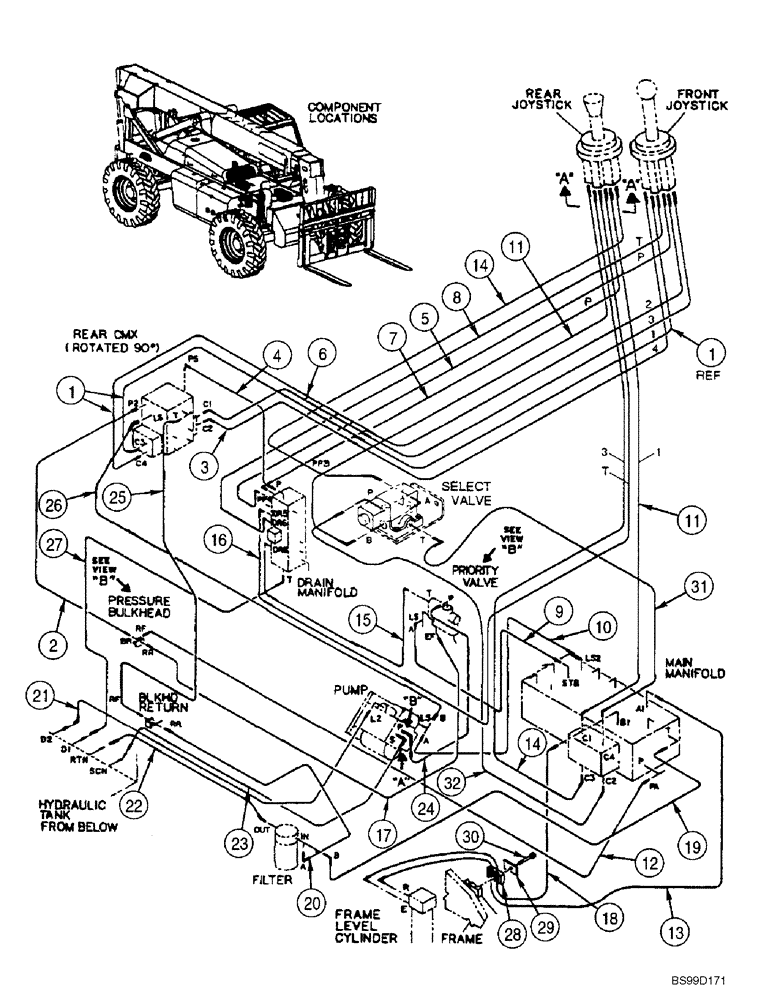

Схема запчастей Case 688G - (8-08) - BASIC HYDRAULIC CIRCUIT (ALL 688G MODELS) (08) - HYDRAULICS
26
30
15
8
24
2
23
22
3
16
32
21
18
1
31
10
4
13
14
14
11
25
7
12
20
19
29
27
5
11
28
9
1
17
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

364975A1

HOSE ASSY.

2шт.

2

364976A1

HOSE ASSY.

1шт.

3

317476A1

HOSE ASSY.

3988 mm (157 inch)

1шт.

4

317495A1

HOSE ASSY.

3505 mm (138 inch)

1шт.

5

316995A1

HOSE ASSY.

1219 mm (48 inch)

1шт.

6

364630A1

HOSE ASSY.

1шт.

7

317477A1

HOSE ASSY.

1384 mm (54-1/2 inch)

1шт.

8

317469A1

HOSE ASSY.

1143 mm (45 inch)

1шт.

9

317465A1

HOSE ASSY.

470 mm (18-1/2 inch)

1шт.

10

364987A1

HOSE ASSY.

1шт.

11

317472A1

HOSE ASSY.

2007 mm (79 inch)

2шт.

12

364989A1

HOSE ASSY.

838 mm (33 inch)

1шт.

13

316978A1

HOSE ASSY.

1372 mm (54 inch)

1шт.

14

326699A1

HOSE ASSY.

1626 mm (64 inch)

2шт.

15

317492A1

HOSE ASSY.

546 mm (21-1/2 inch)

1шт.

16

317493A1

HOSE ASSY.

1194 mm (47 inch)

1шт.

17

317500A1

HOSE ASSY.

1219 mm (48 inch)

1шт.

18

316979A1

HOSE ASSY.

1245 mm (49 inch)

1шт.

19

317479A1

HOSE ASSY.

521 mm (20-1/2 inch)

1шт.

20

317497A1

HOSE ASSY.

495 mm (19-1/2 inch)

1шт.

21

365001A1

HOSE ASSY.

991 mm (39 inch)

1шт.

22

317406A1

HOSE ASSY.

876 mm (34-1/2 inch)

1шт.

23

317405A1

HOSE ASSY.

702 mm (27-5/8 inch)

1шт.

24

365004A1

HOSE ASSY.

737 mm (29 inch)

1шт.

25

365707A1

HOSE ASSY.

1шт.

26

365708A1

HOSE ASSY.

2388 mm (94 inch)

1шт.

27

317485A1

HOSE ASSY.

940 mm (37 inch)

1шт.

28

309944A1

CLAMP

2шт.

29

310084A1

PLATE

1шт.

30

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

1шт.

31

365709A1

HOSE ASSY.

688 mm (27 inch)

1шт.

32

365710A1

HOSE ASSY.

762 mm (30 inch)

1шт.
