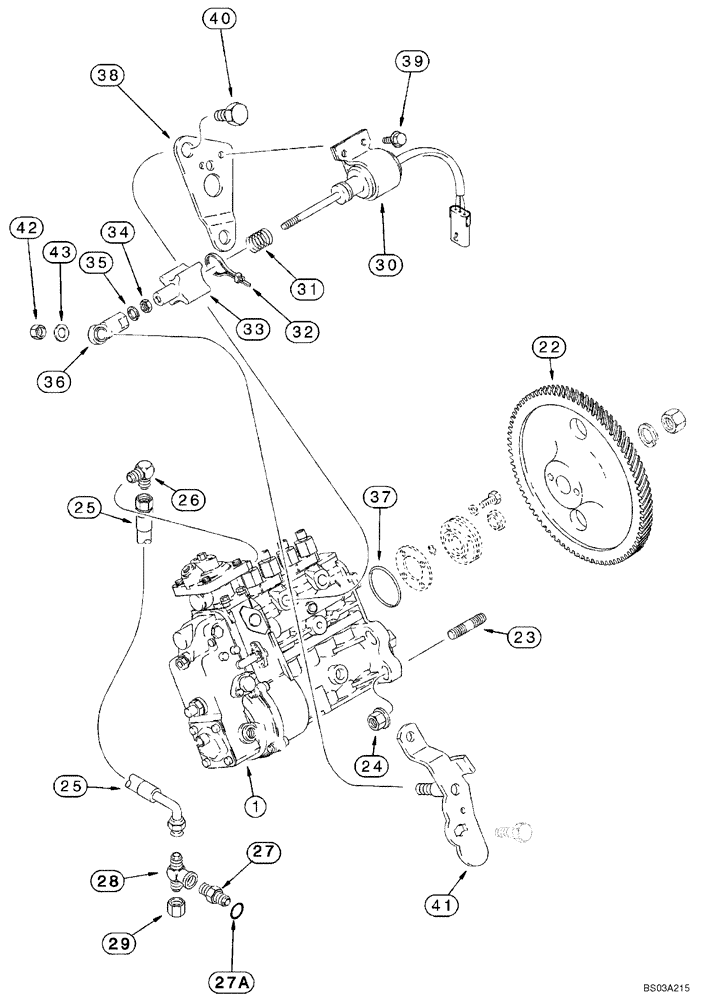

Запчасти Case 686G (3-21) - FUEL INJECTION PUMP AND DRIVE, 4T-390 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM

87413347 ENGINE ONLY

1шт.

1

87413601

PUMP, FUEL INJECTION

PUMP, INJECTION

1шт.

No Component Parts Available At Time of Printing

1шт.

87413602

REMAN-INJECTION PUMP

1шт.

Remanufactured

1шт.

North America Only

1шт.

87413603

CORE-INJECTION PUMP

1шт.

Return Number

1шт.

22

J934636

PINION

1шт.

23

86991263

STUD,M10 x 1.5 x 55

4шт.

Replaces J915036

1шт.

24

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

4шт.

25

J918536

FLEXIBLE HOSE,295.00 mm

1шт.

26

A77512

ELBOW

1шт.

27

J932321

UNION

1шт.

Incl. 27A

1шт.

27a

637-62081

O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro

1шт.

28

J924346

TEE

1шт.

29

218-752

CAP,37 Degree, 7/16"-20

1шт.

30

J932529

SOLENOID

12 V

1шт.

Incl. 31 - 36

1шт.

No Longer Used, Order J991167, REF 30A

1шт.

30a

J991167

SOLENOID

12V

1шт.

Incl. 31 - 36

1шт.

87420952R

REMAN-SOLENOID

688G TIER 2, 686GXR SERIES-2, 686G CASE SERIES-2 TELESCOPIC HANDLER All (5/99-), 686G CASE TELESCOPIC HANDLER (6/98-), Reman for New P/N J991167

1шт.

87420952C

CORE-SOLENOID

Return Number

1шт.

31

311100A1

SPRING

1шт.

32

473321C1

CABLE TIE,8" OAL x 0.098" W

CABLE STRAP

1шт.

33

J925171

BOOT

1шт.

34

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

35

492-11025

LOCK WASHER,1/4"

1шт.

36

311099A1

JOINT

1шт.

37

J935032

SEAL

1шт.

38

J930590

SUPPORT

1шт.

Used With J932529 Solenoid, REF 30

1шт.

39

845-6012

BOLT,Hvy Hex, M6 x 12mm, Cl 8.8

2шт.

Used With J932529 Solenoid, REF 30

1шт.

40

J929456

SCREW,Hex, M16 x 1.5 x 12mm, Gr 8.8

2шт.

Used With J932529 Solenoid, REF 30

1шт.

40a

J991132

SCREW,Hex, M16 x 1.5 x 16mm, Gr 8.8

2шт.

Used With J991167 Solenoid, REF 30A

1шт.

J802998

PACKAGE,SERVICE

Pump Shutoff Lever

1шт.

Incl. 41 - 43

1шт.

41

NSS

NOT SOLD SEPARAT

Lever

1шт.

42

832-41306

NUT,M6 x 1, Cl 10

1шт.

43

J934022

WASHER

1шт.
