(3-06) - THROTTLE LINKAGE AT ENGINE, MODELS WITH NATURALLY ASPIRATED ENGINE

Запчасти Case 686G (3-06) - THROTTLE LINKAGE AT ENGINE, MODELS WITH NATURALLY ASPIRATED ENGINE (03) - FUEL SYSTEM

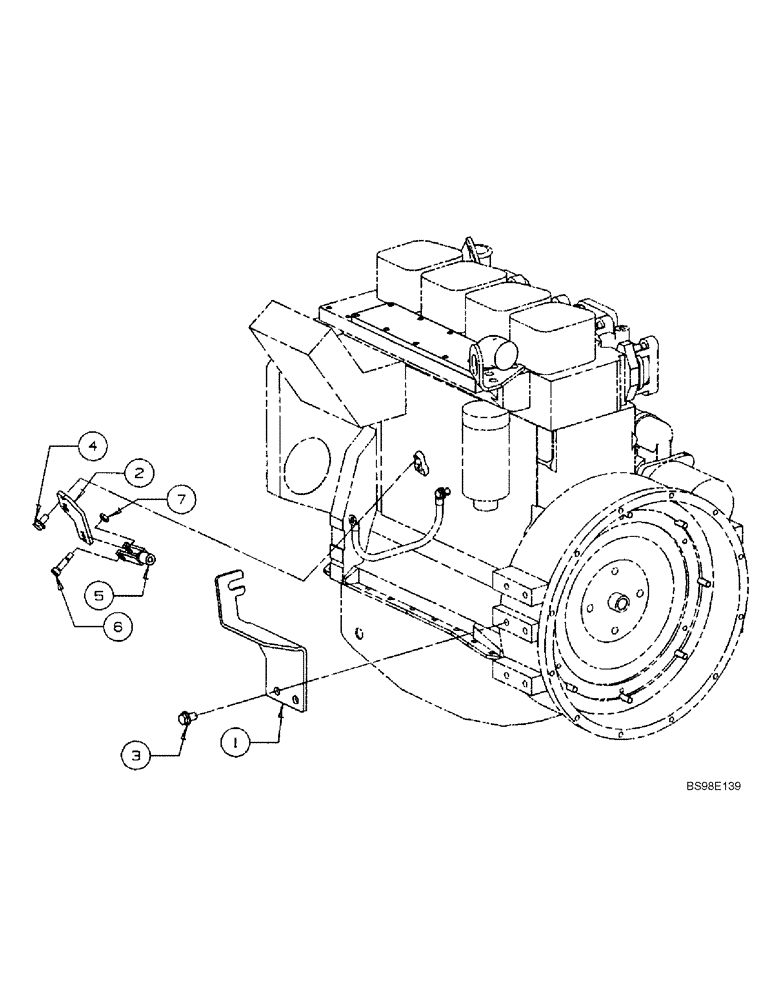

Схема запчастей Case 686G - (3-06) - THROTTLE LINKAGE AT ENGINE, MODELS WITH NATURALLY ASPIRATED ENGINE (03) - FUEL SYSTEM
2
1
6
4
5
7
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

317180A1

BRACKET

1шт.

2

317158A1

LEVER

1шт.

3

905-12020

BOLT,Hex Flg, M12 x 20mm

M12 x 20

2шт.

4

905-6012

BOLT,Hex Flg, M6 x 12mm

M6 x 12

2шт.

5

309943A1

YOKE

UNIVERSAL JOINT YOKE

1шт.

6

121-420

STEP BOLT,Hex Skt, 3/8" - 16 - 1/2" x 5/8"

1шт.

7

231-14409

NUT,#10-24, GB

1шт.

8

374621A1

CABLE ASSY.

1шт.

Not Illustrated

1шт.
