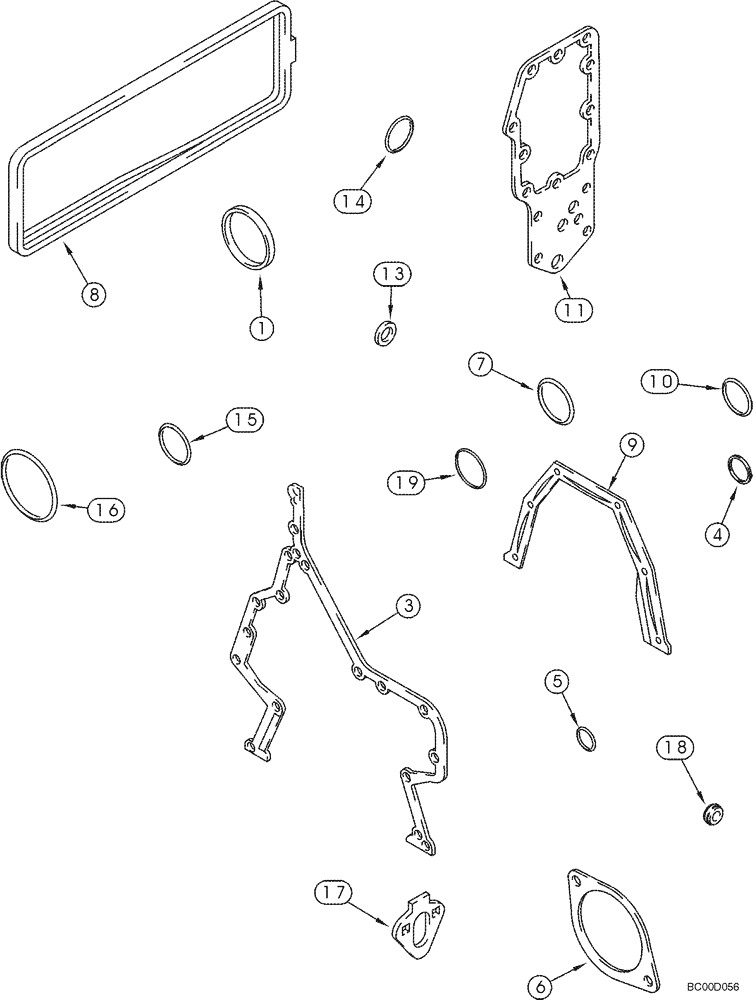

Запчасти Case 686G (2-76) - GASKET KIT, CYLINDER BLOCK, 4-390 AND 4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

A78036

ENGINE GASKET KIT

1шт.

Incl. 1 - 19

1шт.

1

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

1шт.

See Figure 2-24

1шт.

2

J942915

GASKET

1шт.

See Figure 2-34, 2-36

1шт.

Not Illustrated

1шт.

3

J938156

GASKET,0.79mm Thk

1шт.

See Figure 2-24

1шт.

4

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING

1шт.

See Figure 2-24

1шт.

5

J913994

O-RING

1шт.

See Figure 2-24

1шт.

6

J938655

GASKET,1.27mm Thk

1шт.

See Figure 2-24

1шт.

7

J906698

RUBBER SEAL,Square, 5.16mm Thk x 88.27mm ID

1шт.

See Figure 2-22

1шт.

8

J283767

GASKET,7.4mm Thk

1шт.

See Figures 2-52, 2-56

1шт.

9

J938159

GASKET

1шт.

See Figure 2-60

1шт.

10

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

1шт.

See Figures 2-52, 2-56

1шт.

11

J942914

GASKET

1шт.

See Figures 2-34, 2-36

1шт.

13

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

1шт.

See Figures 2-38, 2-40

1шт.

14

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

1шт.

Not Used In This Application

1шт.

15

J929457

O-RING

1шт.

See Figure 2-36

1шт.

16

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING

1шт.

See Figures 2-62, 2-64

1шт.

17

J939258

GASKET,1.21mm Thk

1шт.

See Figure 3-12

1шт.

18

J928759

SEALING WASHER

6шт.

See Figures 2-52, 2-56

1шт.

19

J935032

SEAL

1шт.

See Figures 3-18, 3-20

1шт.
