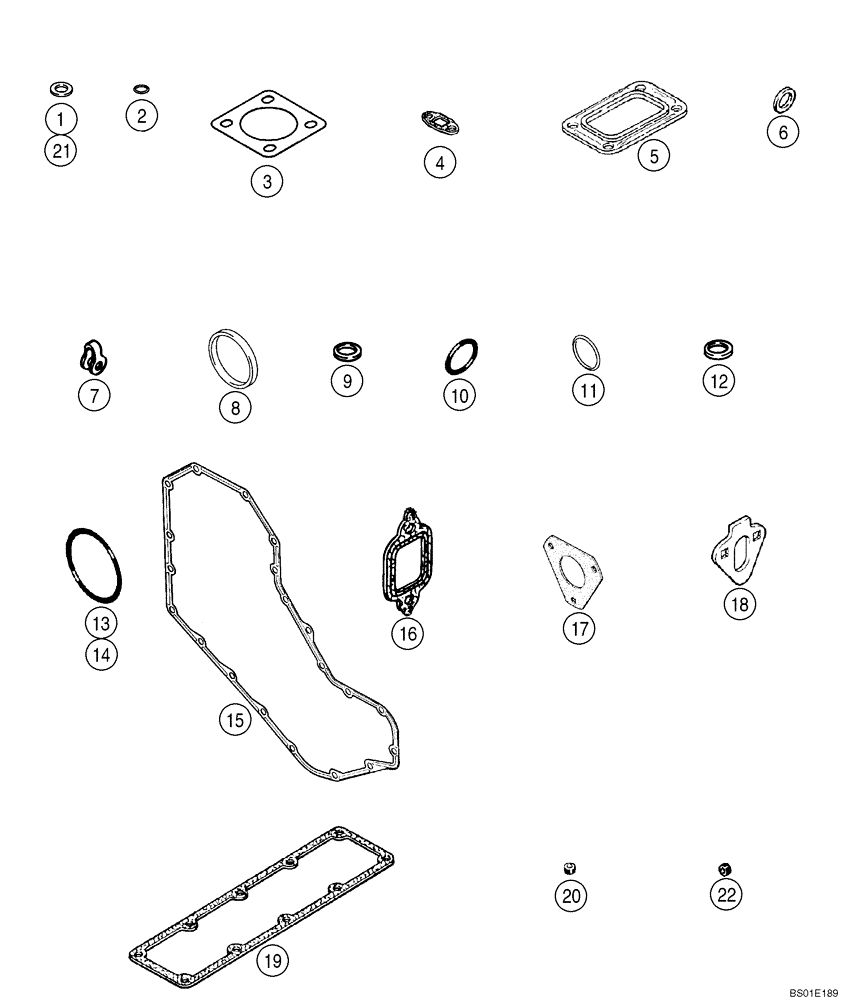

Запчасти Case 686G (2-74) - GASKET KIT, BASIC SERVICE, 4-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

A77993

GASKET KIT

1шт.

Incl. 1 - 21

1шт.

1

222-993

GASKET,3/8 Tube, Fl, Copper

2шт.

Not Used In This Application

1шт.

2

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

2шт.

See Figure 2-34

1шт.

3

J912220

GASKET,0.4mm Thk

1шт.

See Figure 2-26

1шт.

4

J937706

GASKET,0.79mm Thk

2шт.

Not Used In This Application

1шт.

5

J919369

GASKET,0.5mm Thk

1шт.

Not Used In This Application

1шт.

6

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

1шт.

See Figure 2-38

1шт.

7

J903380

SEAL

4шт.

See Figure 3-14

1шт.

8

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

1шт.

See Figure 2-24

1шт.

9

J937142

SEAL,7mm ID x 15mm OD x 1.5mm Thk

4шт.

See Figures 3-14, 3-22

1шт.

10

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

1шт.

Not Used In This Application

1шт.

11

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

1шт.

See Figure 2-52

1шт.

12

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

4шт.

See Figure 3-22

1шт.

13

J910517

O-RING

1шт.

See Figure 2-52

1шт.

14

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING

1шт.

See Figure 2-62

1шт.

15

J914385

GASKET,1.02mm Thk

1шт.

Not Used In This Application

1шт.

16

J927154

GASKET,0.38mm Thk

4шт.

See Figure 2-26

1шт.

17

J931607

GASKET

1шт.

Not Used In This Application

1шт.

18

J939258

GASKET,1.21mm Thk

1шт.

See Figure 3-12

1шт.

19

J938153

MANIFOLD GASKET,0.8mm Thk

1шт.

See Figure 2-26

1шт.

20

222-101

SLEEVE,3/16" Tube

3шт.

Not Used In This Application

1шт.

21

J935171

SEALING WASHER

4шт.

See Figure 3-12

1шт.

22

222-103

SLEEVE,5/16" Tube

4шт.

Not Used In This Application

1шт.
