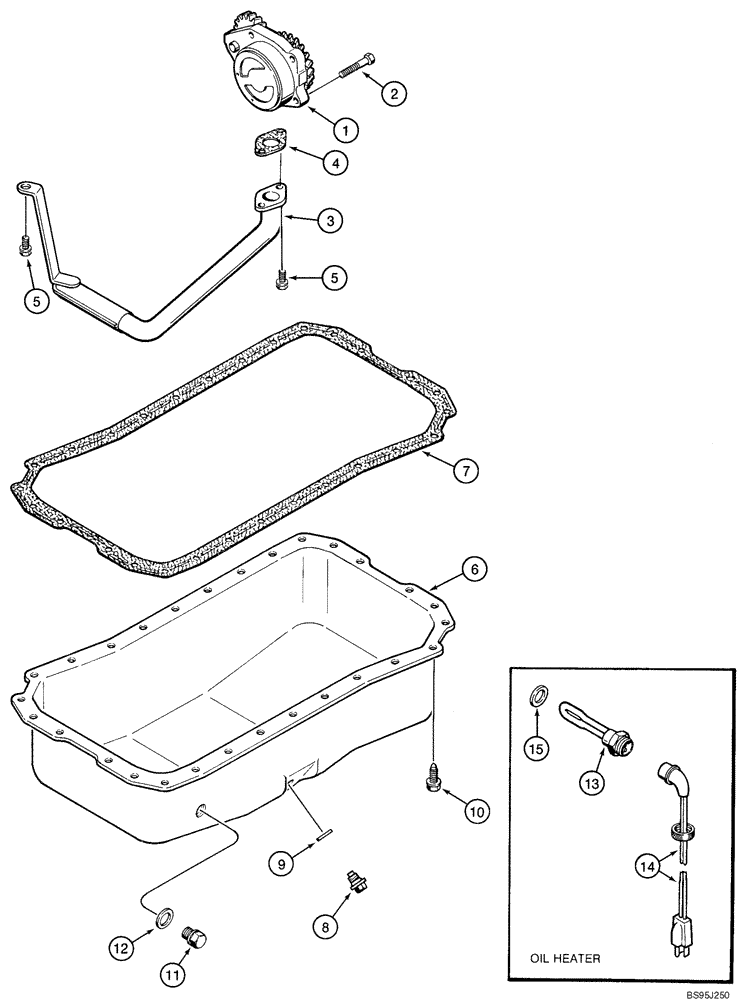

Запчасти Case 686G (2-38) - OIL PUMP AND OIL PAN, 4-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

1

CASJ937028

PUMP, ENGINE OIL

1шт.

JR937028

REMAN-ENG OIL PUMP

686G, 686GXR, Both (6/98), 686G Series 2, 686GXR Series 2, Both (5/99)

1шт.

JC937028

CORE-ENGINE OIL PUMP

Return Number

1шт.

Replaces J932449

1шт.

2

J900677

BOLT,Hex

4шт.

3

J905223

TUBE

1шт.

4

J938157

GASKET,1.2mm Thk

1шт.

Replaces J931349

1шт.

5

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

3шт.

6

J907570

PAN

Oil

1шт.

7

NSS

NOT SOLD SEPARAT

Gasket

1шт.

8

J924147

PLUG,M18 x 1.5

1шт.

9

J920773

SEALING WASHER

1шт.

10

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

28шт.

11

J924148

PLUG,M22 x 1.5

1шт.

12

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

1шт.

A77673

GASKET KIT

1шт.

Incl. 4, 7, 9

1шт.

ENGINE OIL HEATER

1шт.

A77490

KIT

Heater, Engine Oil

1шт.

Incl. 13, 14

1шт.

13

NSS

NOT SOLD SEPARAT

Element

1шт.

14

196466A1

ELECTRIC CABLE

1шт.

15

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

1шт.
