(9-52) - DECALS, RIGHT-HAND SIDE (BSN 686G JFE0000662; 686GXR JFE0001702)

Запчасти Case 686G (9-52) - DECALS, RIGHT-HAND SIDE (BSN 686G JFE0000662; 686GXR JFE0001702) (09) - CHASSIS/ATTACHMENTS

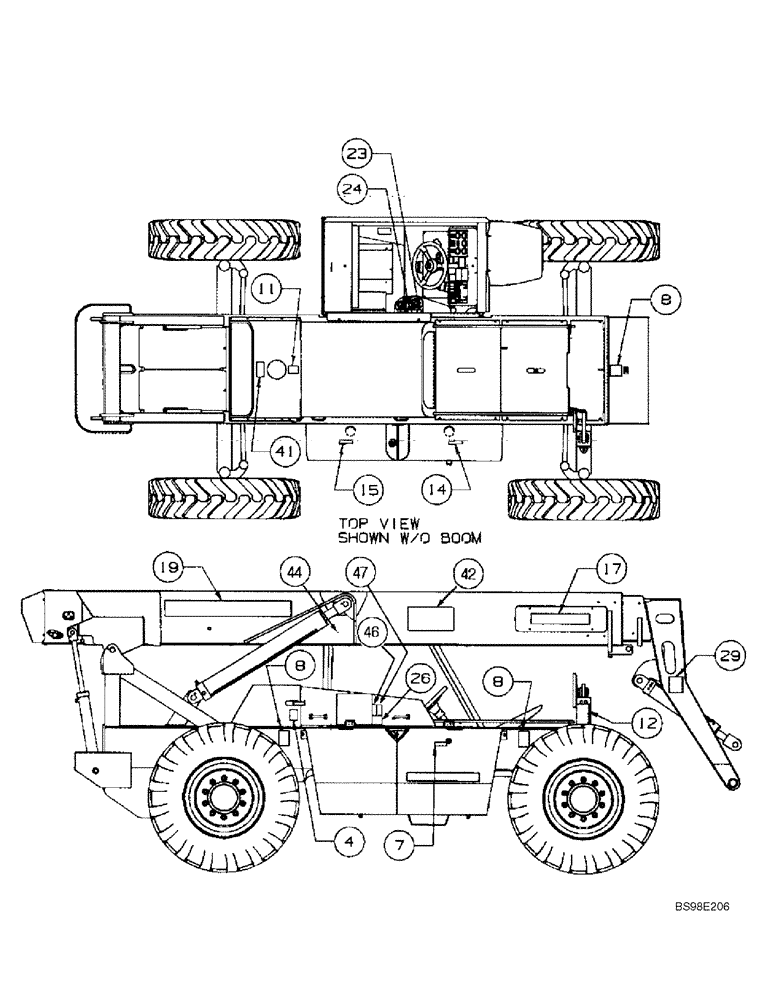

Схема запчастей Case 686G - (9-52) - DECALS, RIGHT-HAND SIDE (BSN 686G JFE0000662; 686GXR JFE0001702) (09) - CHASSIS/ATTACHMENTS
26
24
17
7
15
11
29
44
8
8
8
42
4
14
19
41
46
47
23
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

4

317371A1

DECAL

Warning, Rotating Fan And Belts

1шт.

7

313410A1

DECAL

Hydraulic Oil Level

1шт.

8

309577A1

DECAL

Crush Warning

3шт.

11

317369A1

DECAL

Warning, Pressure Hazard

1шт.

12

310374A1

DECAL

Frame Tipping

1шт.

14

310047A1

DECAL

Hydraulic Oil

1шт.

15

310015A1

DECAL

Fuel

1шт.

17

323203A1

DECAL

Model Identification

1шт.

For 686G

1шт.

17

318181A1

DECAL

Model Identification

1шт.

For 686GXR

1шт.

19

318192A1

DECAL

CASE, Right Hand

1шт.

23

317359A1

DECAL

Front Controller

1шт.

24

317360A1

DECAL

Rear Controller

1шт.

26

309602A1

DECAL

Operation Warning

1шт.

29

309280A1

DECAL

Carriage Shift

1шт.

41

317706A1

DECAL

Procedure, Radiator Fill

1шт.

42

318184A1

DECAL

Striping, Right Hand

1шт.

For 686GXR

1шт.

42

323205A1

DECAL

Striping

1шт.

For 686G

1шт.

44

318188A1

DECAL

Striping, Right Hand

1шт.

46

321-7040

DANGER DECAL

Starting in gear can cause death

1шт.

47

321-6872

DECAL

Warning, Wrong Jumper Cable

1шт.

48

357343A1

DECAL

Case

1шт.

Not Illustrated

1шт.

49

357344A1

DECAL

Danger, Starter

1шт.

Not Illustrated

1шт.

50

357345A1

DECAL

Starter Bypass

1шт.

Not Illustrated

1шт.
