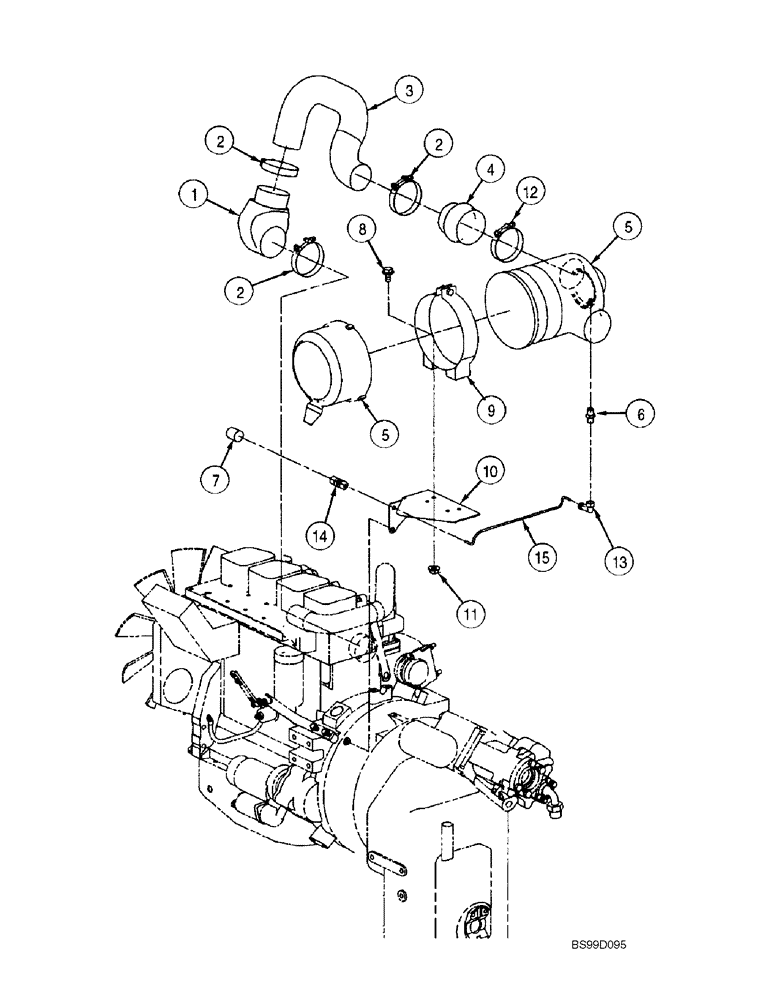

Запчасти Case 686G (2-12) - AIR CLEANER AND AIR INTAKE - TURBOCHARGED ENGINE (02) - ENGINE

1

318085A1

ELBOW

Air Intake

1шт.

2

318083A1

CLAMP

3шт.

3

317134A1

PIPE

Air Cleaner To Engine

1шт.

4

310461A1

REDUCER

1шт.

5

317010A1

AIR FILTER

1шт.

All Models Except 688G Series 2

1шт.

See Figure 2-16

1шт.

5

366559A1

CLEANER ASSY.

Air

1шт.

For 688G Series 2

1шт.

See Figure 2-16

1шт.

6

217-1079

HYD CONNECTOR,1/8" - 27 NPTF

1шт.

7

359588A1

INDICATOR

Air Restriction

1шт.

8

905-8016

BOLT,Hex Flg, M8 x 16mm

2шт.

9

317007A1

BRACKET

1шт.

10

359589A1

BRACKET

1шт.

11

318500A1

NUT

2шт.

12

318084A1

CLAMP

1шт.

13

359595A1

ELBOW

1шт.

14

359596A1

CONNECTOR, ELEC

CONNECTOR

1шт.

15

359598A1

TUBE

Air Cleaner To Indicator

1шт.
