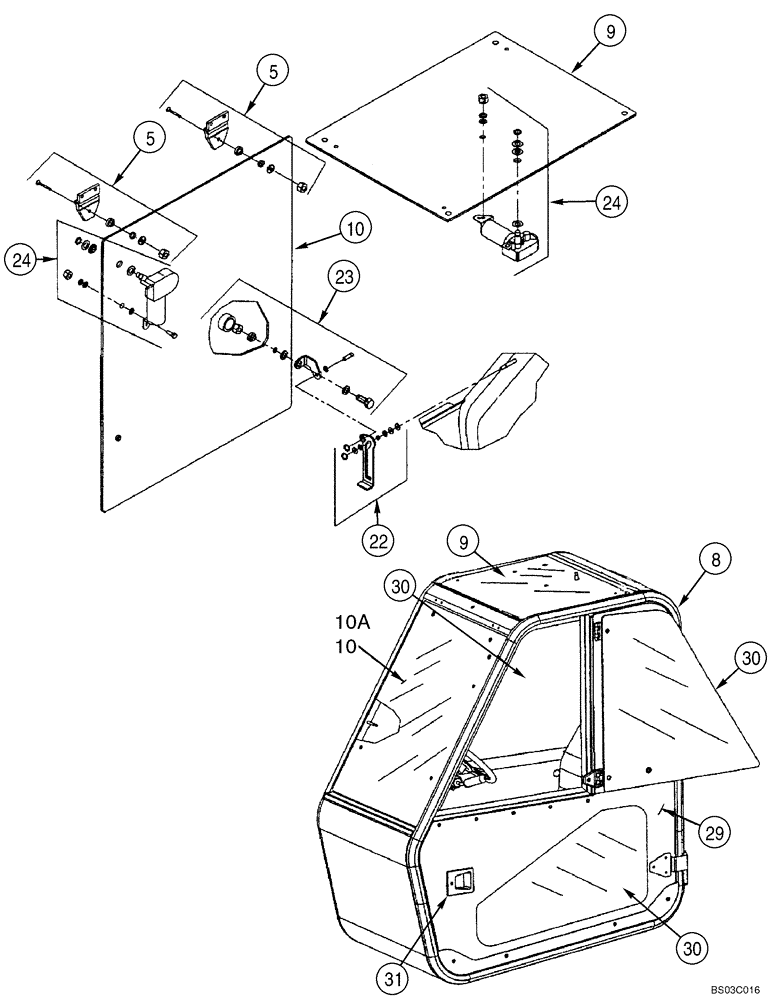

Запчасти Case 686G (9-22) - ENCLOSED CAB, DOOR AND WINDOWS (SERIES 1 686G AND 686GXR) (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

Cab Assy, Operators, Enclosed

1шт.

686G and 686GXR

1шт.

Incl. 5 - 31

1шт.

Also Includes Parts On Figures 9-20, 9-22

1шт.

5

317868A1

HINGE

Front Window

2шт.

Does Not Include Hardware

1шт.

Order 365457A1 For Window Hinge With Hardware

1шт.

317860A1

GLASS

1шт.

Incl. 8 - 10

1шт.

No Longer Available, Order Components Separately

1шт.

8

358223A1

GLASS

Rear Window

1шт.

9

358907A1

GLASS

Top

1шт.

10

359830A1

GLASS

Front

1шт.

Units With Factory Installed ROPS enclosure

1шт.

10a

389397A1

GLASS

1шт.

Units With Field Installed ROPS Enclosure

1шт.

22

317870A1

KIT

Pivot, Rear Window

2шт.

23

317871A1

KIT

Window Suppport

2шт.

Does Not Include Hardware

1шт.

24

352805A1

WIPER

Motor

2шт.

Does Not Include Hardware

1шт.

29

317874A1

DOOR ASSY.

Cab, Early Production

1шт.

Incl. 30, 31

1шт.

29

367339A1

DOOR ASSY.

Cab, Late Production

1шт.

30

364754A1

GLASS

Cab Door

1шт.

Includes 32 - 35

1шт.

No Longer Available, Order Components Separately

1шт.

31

355470A1

KEY

1шт.

32

356274A1

GLASS

Upper Front

1шт.

Not Illustrated

1шт.

33

367291A1

GLASS

Lower Door

1шт.

Not Illustrated

1шт.

34

367294A1

GLASS

Upper Rear Fixed

1шт.

Not Illustrated

1шт.

35

375762A1

LATCH

Hold Back For Ref 30

1шт.

Includes Latch, Holdback Anchor, 2 Flat Washers, Nut and Lockwasher

1шт.

Not Illustrated

1шт.
