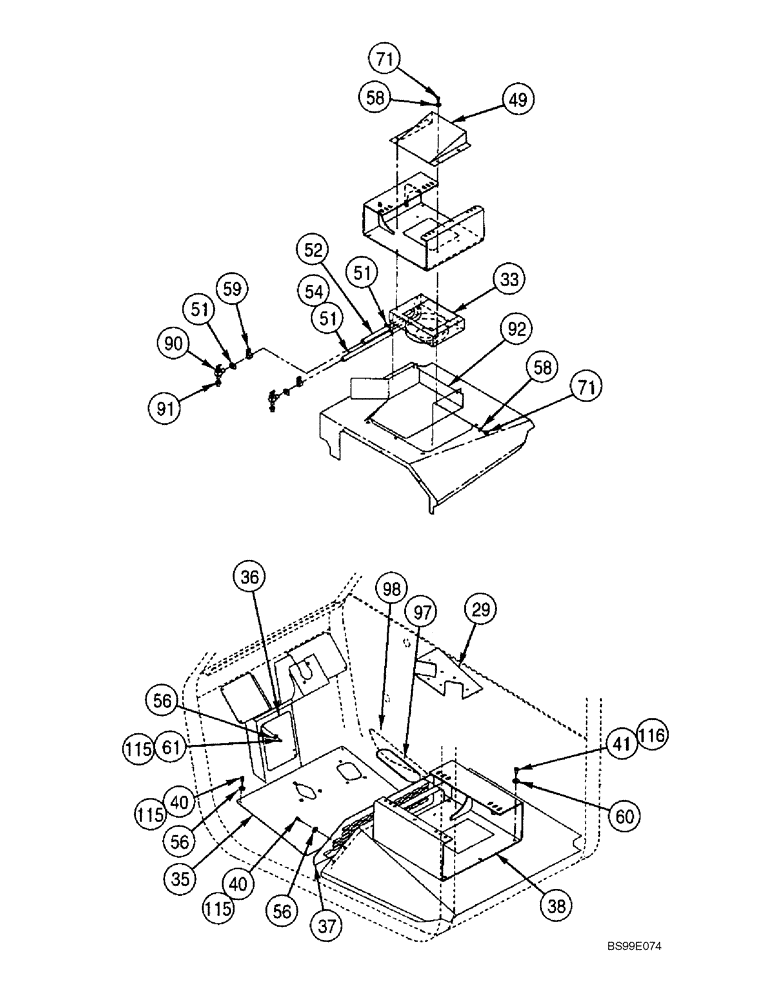

Запчасти Case 686G (9-21) - ENCLOSED CAB, HEATER AND PANELS (SERIES 1 686G AND 686GXR) (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

Cab Assy, Operators, Enclosed

1шт.

686G and 686GXR

1шт.

Incl. 29 - 116

1шт.

Also Includes Parts On Figures 9-20, 9-22

1шт.

29

367268A1

PANEL

Lift Control

1шт.

33

367340A1

HEATER

1шт.

Incl. 33A - 33D

1шт.

33a

367341A1

BRACKET

Right Hand

1шт.

33b

367342A1

BRACKET

Left Hand

1шт.

33c

367343A1

CORE, RADIATOR

Heater

1шт.

33d

367345A1

FAN

Heater

1шт.

35

367274A1

PANEL

Floor, Pedal Mounting

1шт.

36

367275A1

PANEL

Access, Lower Console

4шт.

37

367276A1

PANEL

Access, Heater

1шт.

38

367277A1

SUPPORT

Seat

1шт.

40

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

10шт.

41

514-640

BOLT,Hex, M8 x 1 x 12mm, Cl 8.8, Full Thd

M8 x 12

6шт.

49

367331A1

DUCT

Heater, Upper

1шт.

51

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

4шт.

52

367329A1

HOSE

2426 mm (95-1/2 in)

1шт.

54

367330A1

HOSE

2350 mm (92-1/2 in)

1шт.

56

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

14шт.

58

367332A1

WASHER

8шт.

59

310407A1

CLAMP

1шт.

60

367281A1

WASHER

6шт.

61

367282A1

SCREW

4шт.

71

367284A1

SCREW

8шт.

90

309911A1

VALVE

Shut-Off, Heater

2шт.

91

309946A1

REDUCER

2шт.

92

367334A1

DUCT

Heater, Lower

1шт.

97

365448A1

GROMMET

1шт.

98

365449A1

GROMMET

1шт.

115

365447A1

CAP

10шт.

116

365446A1

CAP

6шт.
