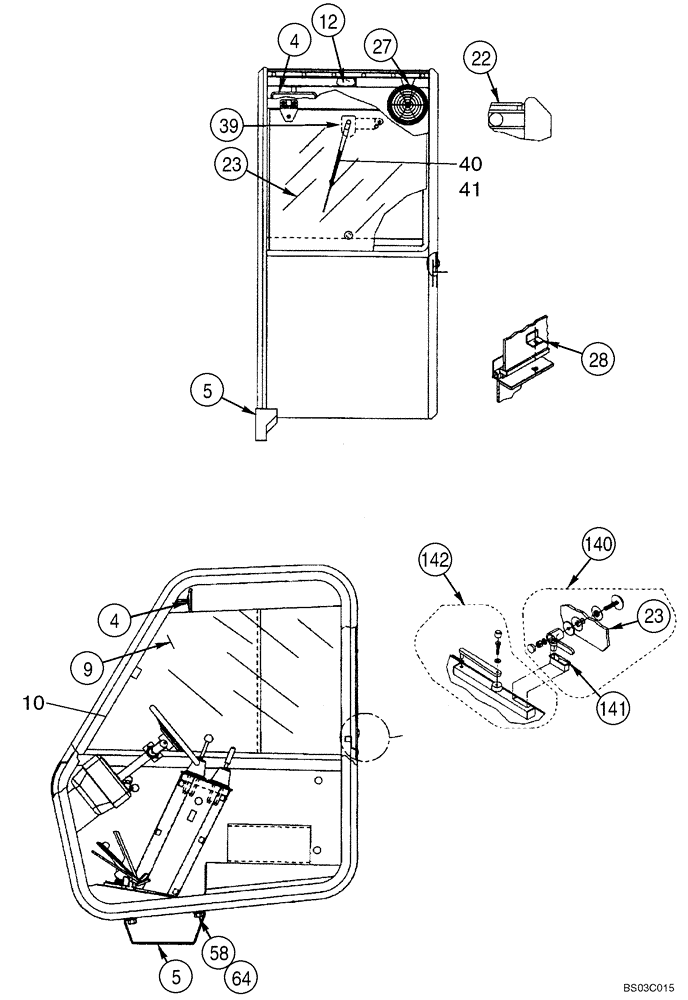

Запчасти Case 686G (9-20) - ENCLOSED CAB, WINDOW KITS (SERIES 1 686G AND 686GXR) (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

Cab Assy, Operators, Enclosed

1шт.

686G and 686GXR Series 1

1шт.

Incl. 4 - 142

1шт.

Also Includes Parts On Figures 9-21 And 9-22

1шт.

4

317858A1

MIRROR

Rear View

1шт.

4-3/8 x 8-5/16 (Old Mirror)

1шт.

5-5/8 x 7-11/16 (New Mirror)

1шт.

Same Part number, New Mirror Will Fit In Place of Old Mirror

1шт.

5

356405A1

STEP

Cab

1шт.

8

317868A1

HINGE

Rear Window

4шт.

9

317861A1

WINDOW

Sliding, Right Hand

1шт.

10

365453A1

SEAL, GLASS

Window

1шт.

For 317861A1 Window

1шт.

12

314073A1

GAUGE

Leveling

1шт.

22

358907A1

GLASS

Top

1шт.

23

358223A1

GLASS

Rear Window

1шт.

27

317875A1

FAN

Defroster

1шт.

28

317876A1

BRACKET

Side Window

2шт.

39

352805A1

WIPER

Motor

2шт.

40

367269A1

ARM

Wiper

1шт.

41

367278A1

WIPER BLADE

BLADE, WIPER

1шт.

58

614-18035

BOLT,Hex, M18 x 2.5 x 35mm, Cl 8.8, Full Thd

M18 x 35

4шт.

64

895-12018

WASHER,M18 x 34 x 3

20 x 34 x 3 mm

4шт.

140

317864A1

KIT

Latch

1шт.

All Models Except 688G Series 2

1шт.

140

365455A1

KIT

Latch

1шт.

Incl. 141

1шт.

688G Series 2

1шт.

141

317866A1

CONTAINER

1шт.

142

317867A1

KIT

Brace

1шт.
