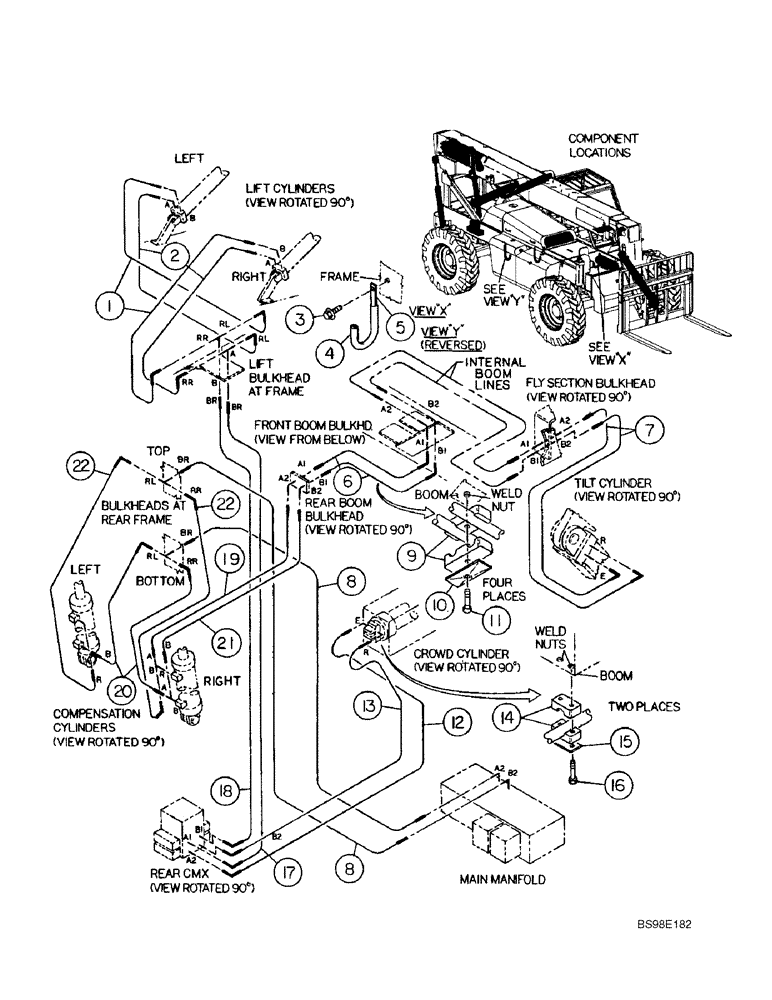

Запчасти Case 686G (8-22) - BOOM HYDRAULIC HOSES (SERIES 1 686G AND SERIES 1 686GXR) (08) - HYDRAULICS

1

317481A1

HOSE ASSY.

2шт.

2

317480A1

HOSE ASSY.

2шт.

3

905-8020

BOLT,Hex Flg, M8 x 20mm

M8 x 20

3шт.

4

317395A1

HOSE ASSY.

3шт.

5

317394A1

HOOK

3шт.

6

326705A1

HOSE ASSY.

3658 mm (144 in)

2шт.

For 686G and 686G Series 2

1шт.

6

317478A1

HOSE ASSY.

3861 mm (152 in)

2шт.

For 686GXR

1шт.

7

317006A1

HOSE ASSY.

927 mm (36-1/2 in)

2шт.

8

317443A1

HOSE ASSY.

3962 mm (156 in)

2шт.

9

309944A1

CLAMP

8шт.

10

310084A1

PLATE

4шт.

11

426-522

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 8

5/16 x 1-3/8 in

4шт.

12

326706A1

HOSE ASSY.

2464 mm (97 in)

1шт.

For 686G and 686G Series 2

1шт.

12

317408A1

HOSE ASSY.

2388 mm (94 in)

1шт.

For 686GXR

1шт.

13

317407A1

HOSE ASSY.

2464 mm (97 in)

1шт.

14

318041A1

CLAMP

4шт.

15

310072A1

PLATE

2шт.

16

426-422

BOLT,Hex, 1/4" - 20 x 1-3/8", Gr 8

1/4 x 1-3/8 in

4шт.

17

317496A1

HOSE ASSY.

1143 mm (45 in)

1шт.

18

317491A1

HOSE ASSY.

1143 mm (45 in)

1шт.

19

316986A1

HOSE ASSY.

914 mm (36 in)

1шт.

20

317447A1

HOSE ASSY.

457 mm (18 in)

2шт.

21

317502A1

HOSE ASSY.

1448 mm (57 in)

1шт.

22

317005A1

HOSE ASSY.

864 mm (34 in)

2шт.
