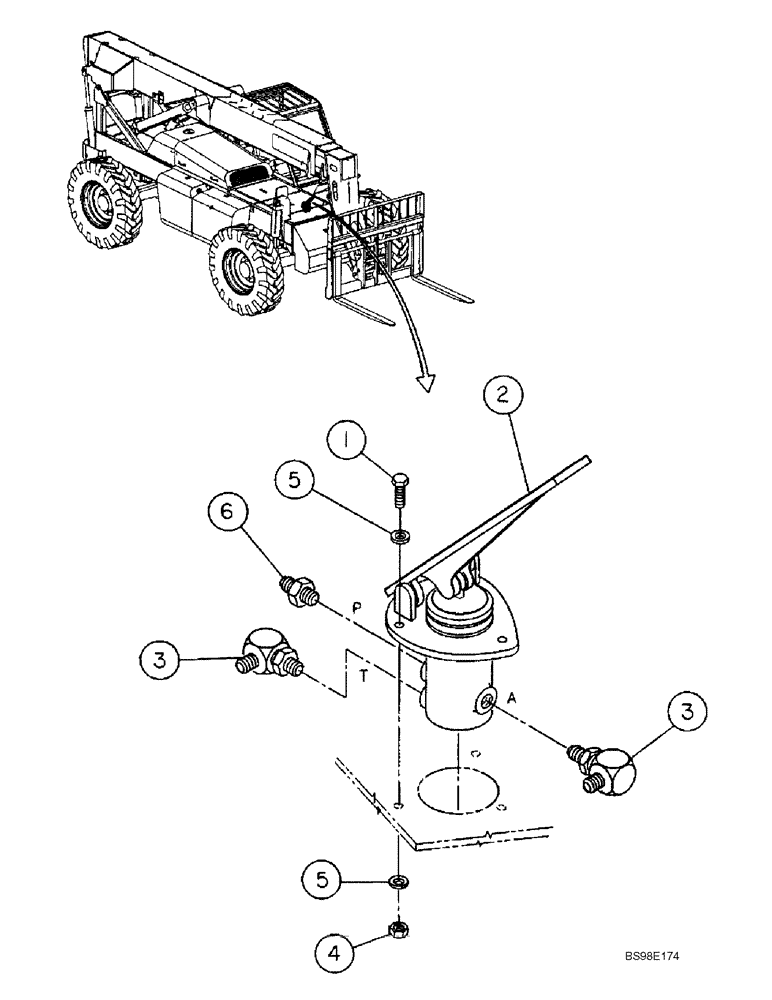

Запчасти Case 686G (7-02) - BRAKE VALVE MOUNTING AND RELATED PARTS (BSN 686G JFE0000706; 686GXR JFE0001848; 688G JFE0003613) (07) - BRAKES

1

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

2

317109A1

VALVE, BRAKE

With Pedal

1шт.

All Models Except 688G

1шт.

See Figures 7-4

1шт.

2

365418A1

PEDAL

Valve, Brake

1шт.

For 688G Models

1шт.

Component Part Information Not Available At Time Of Publication

1шт.

3

309959A1

ADAPTER

90 degrees

2шт.

4

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

3шт.

5

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm

6шт.

6

309979A1

ADAPTER

Straight

1шт.

7

365446A1

CAP

For Ref 1 Bolt Above

3шт.

Not Illustrated

1шт.
