(6-22) - TRANSMISSION COOLING LINES, ASPIRATED AND TURBO

Запчасти Case 686G (6-22) - TRANSMISSION COOLING LINES, ASPIRATED AND TURBO (06) - POWER TRAIN

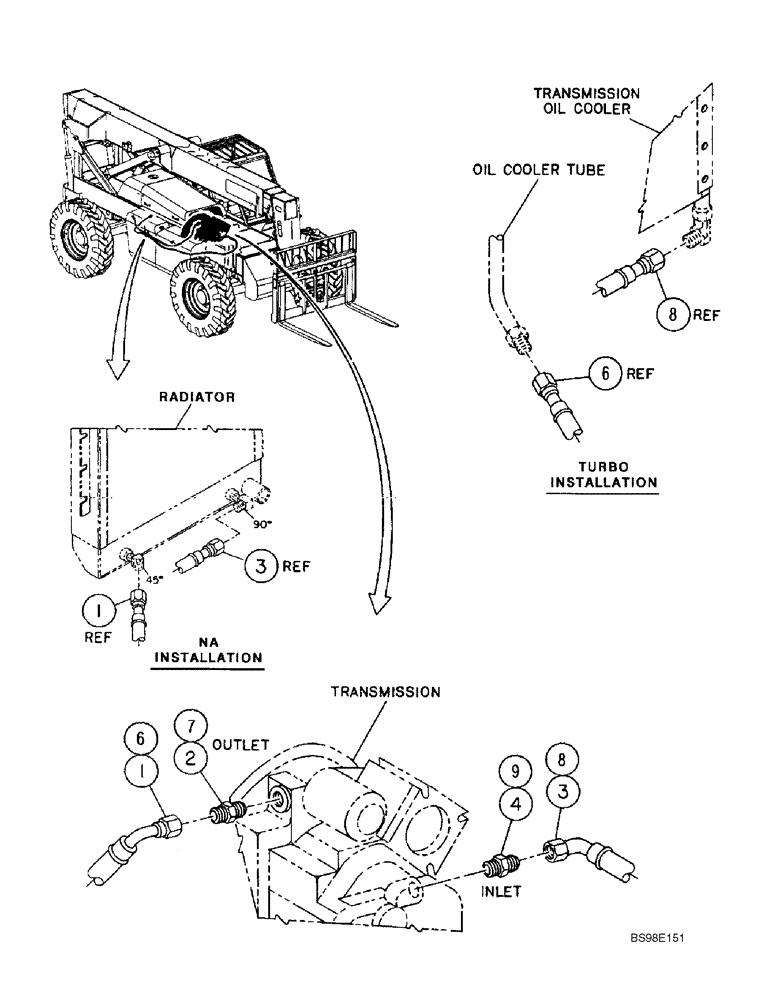

Схема запчастей Case 686G - (6-22) - TRANSMISSION COOLING LINES, ASPIRATED AND TURBO (06) - POWER TRAIN
1
8
4
7
2
9
6
3
8
6
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

FOR MODELS WITH NATURALLY ASPIRATED ENGINE

1шт.

1

326797A1

HOSE ASSY.

Radiator To Transmission

1шт.

2

318089A1

ADAPTER

1шт.

3

326798A1

HOSE ASSY.

Radiator To Transmission

1шт.

4

318090A1

ADAPTER

1шт.

FOR MODELS WITH TURBOCHARGED ENGINE

1шт.

6

317412A1

HOSE ASSY.

Oil Cooler Tube To Transmission

1шт.

7

318089A1

ADAPTER

1шт.

8

317409A1

HOSE ASSY.

Oil Cooler To Transmission

1шт.

9

318090A1

ADAPTER

1шт.
