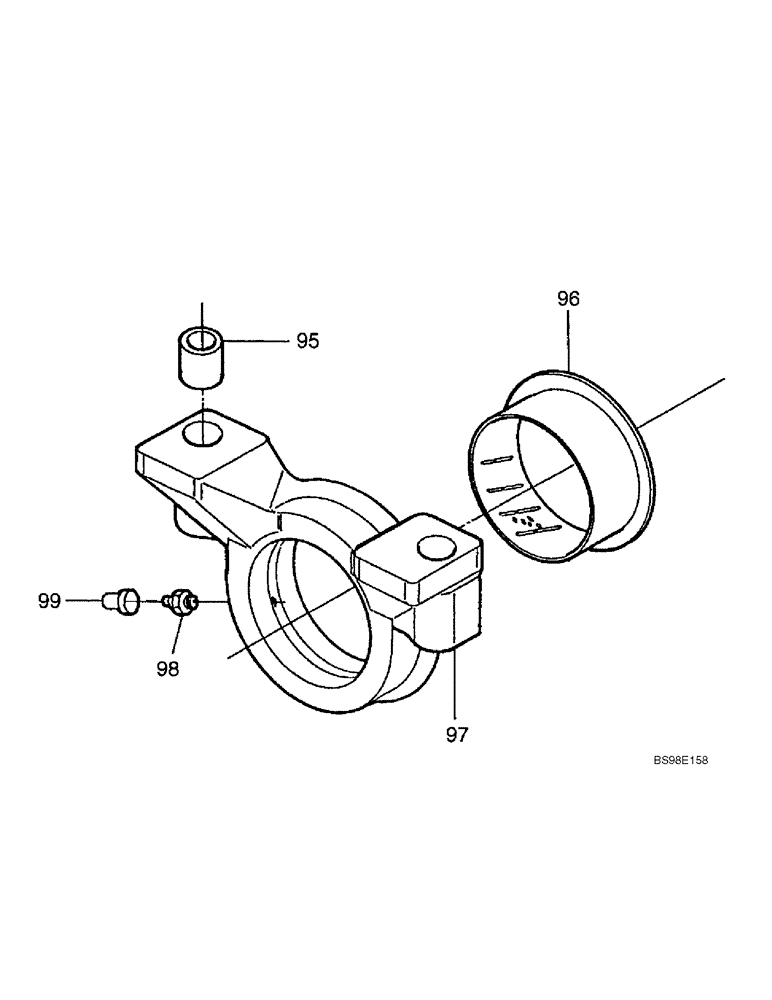

Запчасти Case 686G (6-18) - FRONT AND REAR AXLE, TRUNNION (06) - POWER TRAIN

REF

INSTRUCTION

Axle, Front

1шт.

See Figure 6-04 For Correct Axle For Each Model

1шт.

REF

INSTRUCTION

Axle, Rear

1шт.

See Figure 6-04 For Correct Axle For Each Model

1шт.

95

317779A1

BUSHING

Trunnion

4шт.

96

317780A1

BUSHING

Thrust

2шт.

97

317781A1

SUPPORT

Axle

2шт.

For 366274A1, 367205A1 and 367203A1 Axle

1шт.

97

366666A1

SUPPORT

Axle

2шт.

For 316217A1, 359438A1, 389343A1, 316218A1, 359439A1 and 389344A1 Axle

1шт.

98

318047A1

FITTING

Grease

2шт.

99

317040A1

PLUG

Port

2шт.
