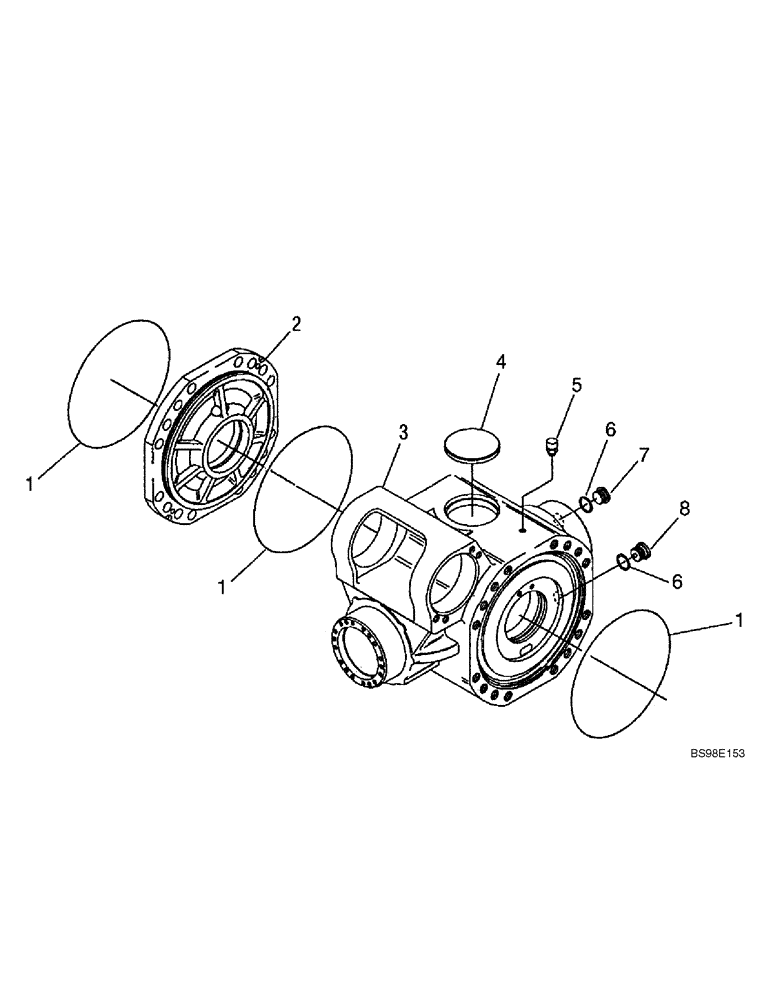

Запчасти Case 686G (6-06) - AXLE CENTER HOUSING (06) - POWER TRAIN

REF

INSTRUCTION

Axle, Front

1шт.

See Figure 6-04 For Correct Axle For Each Model

1шт.

REF

INSTRUCTION

Axle, Rear

1шт.

See Figure 6-04 For Correct Axle For Each Model

1шт.

1

318061A1

O-RING

Intermediate Housing Cover

3шт.

2

317635A1

COVER

Intermediate

1шт.

316217A1, 316218A1 Axle

1шт.

3

317636A1

HOUSING

Center, Front Axle

1шт.

316217A1

1шт.

3

317783A1

HOUSING

Center, Rear Axle

1шт.

316218A1 Axle

1шт.

4

317637A1

PLUG

Housing

1шт.

316217A1, 316218A1 Axle

1шт.

5

317638A1

VENT

Housing

1шт.

6

318065A1

SEALING WASHER

2шт.

7

318064A1

PLUG

1шт.

8

317639A1

PLUG

1шт.
