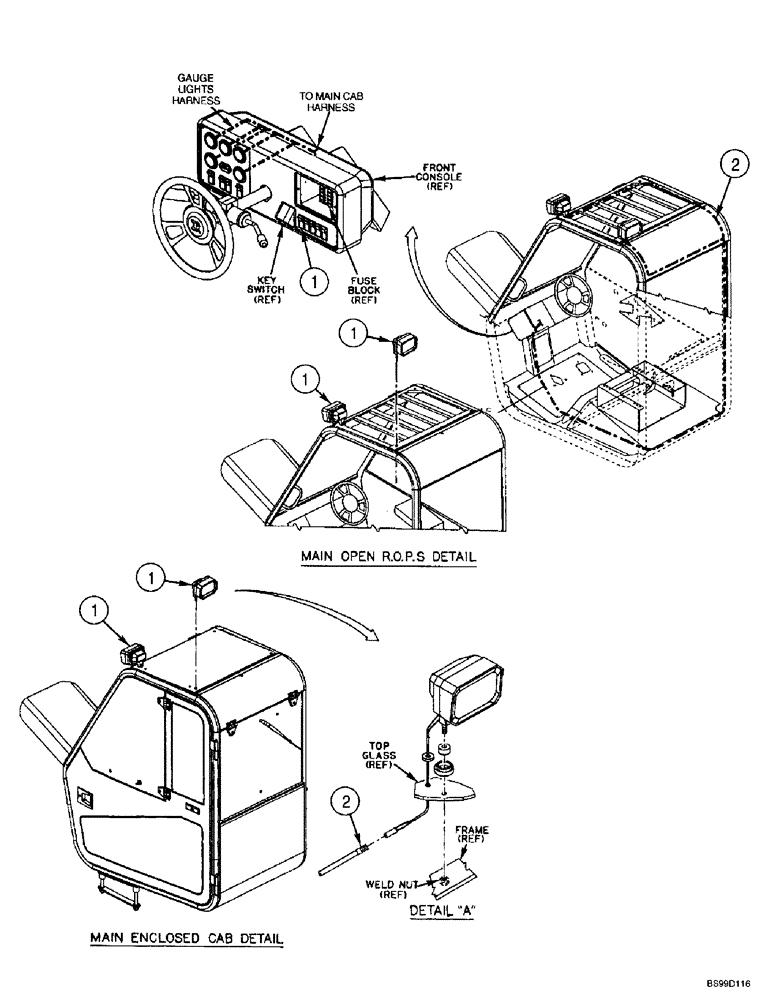

Запчасти Case 686G (4-18) - *FRONT AND REAR WORK OR ROAD LAMPS (04) - ELECTRICAL SYSTEMS

1

363084A1

KIT

Lamp, Work or Road

1шт.

No Longer Available As An Assembly, Order Components Separately

1шт.

Incl. 1A - 1G

1шт.

Component Parts Not Illustrated

1шт.

1a

317872A1

LIGHT

Work or Road

1шт.

1b

370529A1

SWITCH

Rocker

1шт.

3 Position

1шт.

1c

363085A1

HARNESS

1шт.

1d

363086A1

LAMP

Gauge Lamp

1шт.

Includes 5 Gauge Lamps Attached To Harness, REF 1E

1шт.

1e

310403A1

BULB

Two Ear, Push In and Twist

5шт.

For Bulb With Harness and Spade Terminals, Order 433324A1

1шт.

1f

309915A1

FUSE

20 AMP

1шт.

1g

87421221

GROMMET

Grommet

2шт.

2

344611A1

HARNESS

Road Lamp

1шт.

For 686G and 686GXR

1шт.

Frame or ROPS mounting

1шт.

2

367784A1

HARNESS

Road Lamp

1шт.

For Series 2 models

1шт.

Frame Mounting

1шт.

Replaces 363049A1

1шт.

2

363087A1

HARNESS

Work Lamp

1шт.

For Series 2 models

1шт.

ROPS mounting

1шт.

3

400067A1

FUSE CARTRIDGE

1шт.

Not Illustrated

1шт.

See Figure 9-06

1шт.
