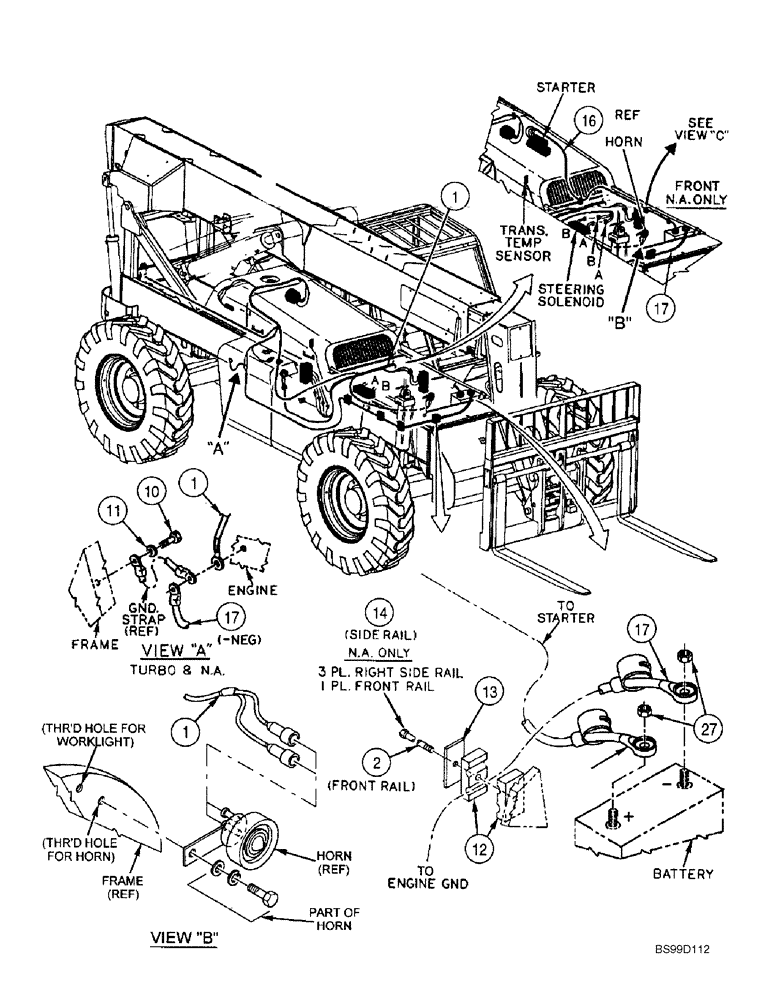

Запчасти Case 686G (4-04) - *BATTERY CABLES AND HARNESS (04) - ELECTRICAL SYSTEMS

1

317102A1

HARNESS

Main Electrical

1шт.

All Models Except Series 2 688G

1шт.

1

365241A1

HARNESS

Main Electrical

1шт.

For Series 2 688G

1шт.

2

426-522

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 8

5/16 x 1-3/8 in

1шт.

10

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

12

310083A1

CLAMP

8шт.

13

310084A1

PLATE

4шт.

14

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

3шт.

16

326800A1

CABLE

Postive

1шт.

All Models Except Series 2 688G

1шт.

16

362968A1

CABLE

Positive

1шт.

For 688G Series 2

1шт.

17

317106A1

NEG BATTERY CABLE

1шт.

All Models Except Series 2 688G

1шт.

17

362969A1

CABLE

Negative

1шт.

For Series 2 688G

1шт.

24

356720A1

STRAP

Tie

1шт.

Not Illustrated

1шт.

27

317885A1

NUT

2шт.

11

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.
