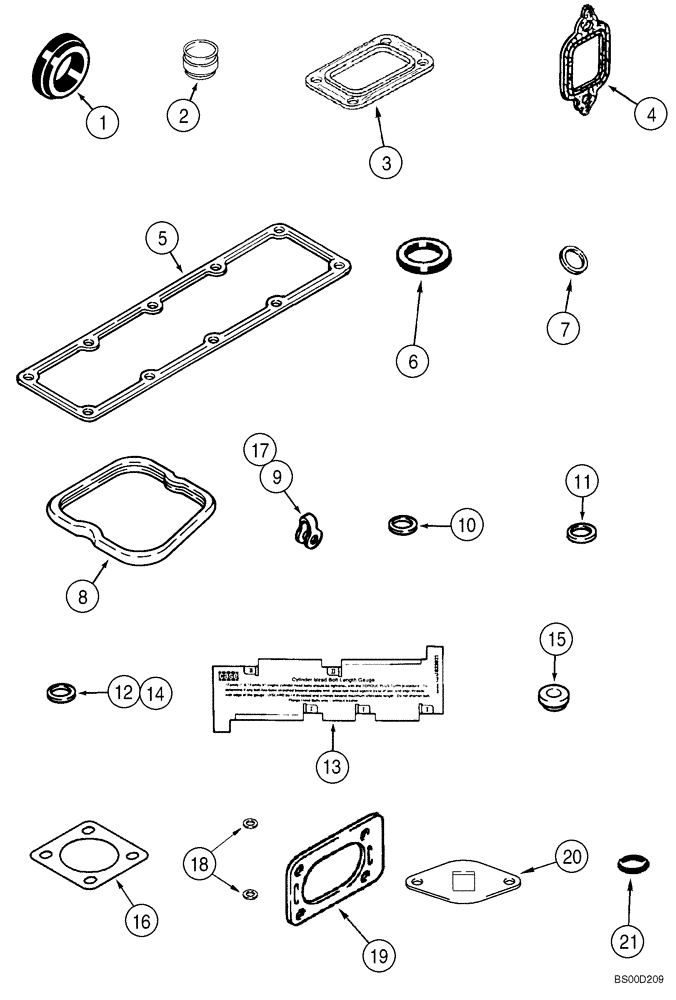

Запчасти Case 686G (2-72) - GASKET KIT, VALVE GRIND, 4-390 AND 4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

87405727

ENGINE GASKET KIT

Valve Grind

1шт.

Incl. 1 - 21

1шт.

1

J923331

GASKET

Housing

1шт.

Not Used In This Application

1шт.

2

J921640

SEAL

8шт.

See Figures 2-44, 2-46

1шт.

3

J919369

GASKET,0.5mm Thk

Turbocharger Mounting

1шт.

See Figure 2-28

1шт.

4

J927154

GASKET,0.38mm Thk

Exhaust Mounting

4шт.

See Figure 2-26

1шт.

5

J938153

MANIFOLD GASKET,0.8mm Thk

Intake Manifold

1шт.

See Figure 2-26

1шт.

6

J936876

SEALING RING,30mm ID x 48mm OD x 2.8mm Thk

1шт.

Not Used In This Application

1шт.

7

J900808

SEAL

4шт.

Not Used In This Application

1шт.

8

J930906

GASKET

Valve Cover

4шт.

See Figure 2-42

1шт.

9

J903380

SEAL

4шт.

See Figure 3-14

1шт.

10

J937142

SEAL,7mm ID x 15mm OD x 1.5mm Thk

4шт.

See Figures 3-22, 3-24

1шт.

11

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

4шт.

See Figures 3-22, 3-24

1шт.

12

J923261

WASHER,7.2mm ID x 15mm OD x 2.5mm Thk

4шт.

Not Used In This Application

1шт.

13

87404692

GAUGE

Cylinder Head Bolt Length

1шт.

14

J930324

SEAL

4шт.

Not Used In This Application

1шт.

15

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

4шт.

See Figure 2-42

1шт.

16

J912220

GASKET,0.4mm Thk

1шт.

See Figure 2-26

1шт.

17

J903380

SEAL

1шт.

See Figure 3-14

1шт.

18

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

2шт.

See Figure 3-12

1шт.

19

J914856

GASKET,1.02mm Thk

1шт.

Not Used In This Application

1шт.

20

J937706

GASKET,0.79mm Thk

1шт.

See Figure 2-28

1шт.

21

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

4шт.

Not used in this application

1шт.
