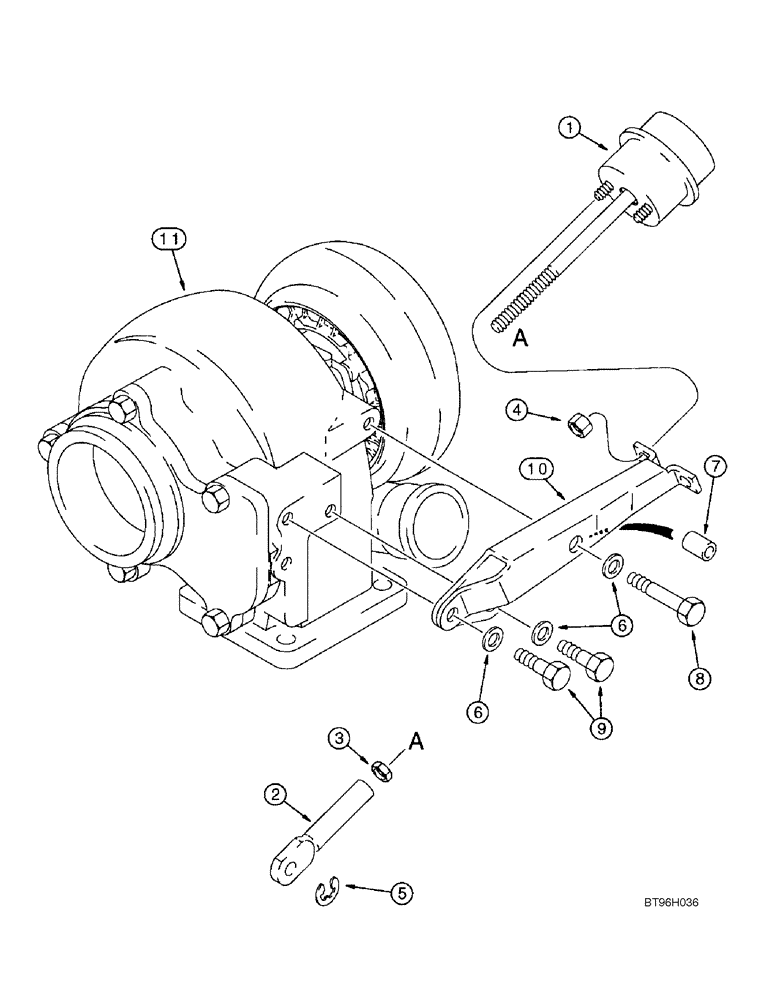

Запчасти Case 686G (2-32) - WASTEGATE ACTUATOR, 4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

J802798

TURBOCHARGER

1шт.

.

Incl. 1 - 11

1шт.

.

Also Incl. 2 - 24 on Figure 2-30

1шт.

JR802798

REMAN-TURBOCHARGER

Remanufactured Turbocharger

1шт.

JC536336

CORE-TURBOCHARGER

Return Part Number

1шт.

1

J594347

ACTUATOR

1шт.

2

J528177

LINK

1шт.

3

425-155

JAM NUT,Jam, 5/16"-24, G5

1шт.

4

J592050

NUT

2шт.

5

J528221

CIRCLIP

1шт.

6

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

7

J532195

SPACER,9.38mm ID x 16.03mm OD x 13.7mm L

1шт.

8

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

1шт.

9

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

10

J535203

SUPPORT

1шт.

11

NSS

NOT SOLD SEPARAT

Housing

1шт.
