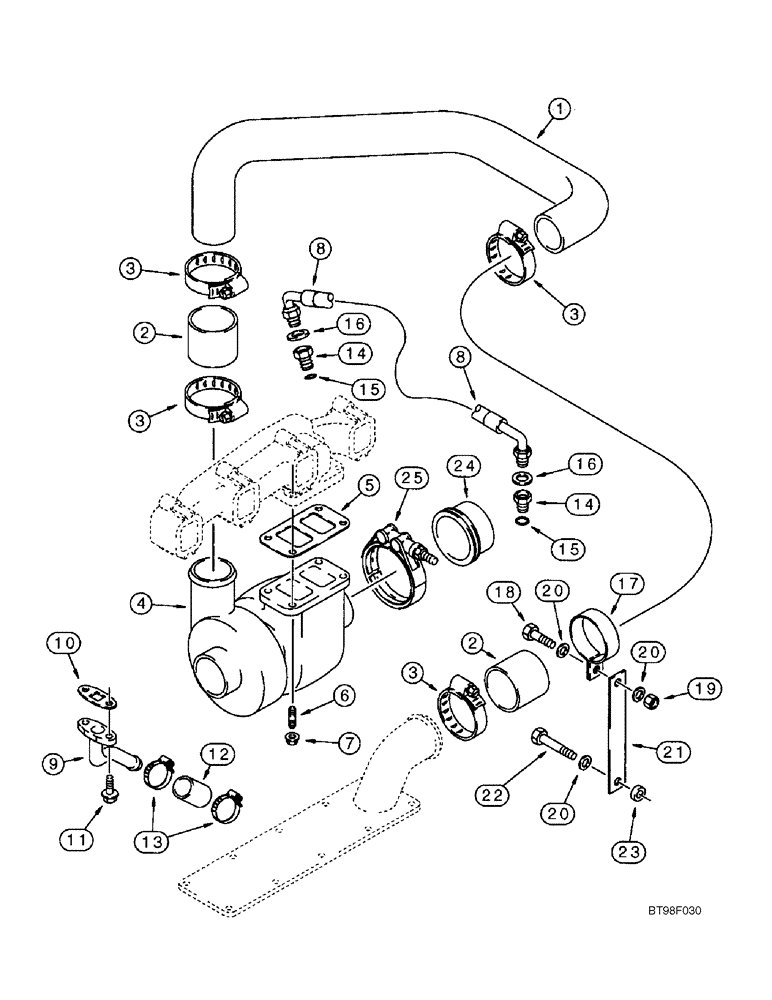

Запчасти Case 686G (2-28) - TURBOCHARGER SYSTEM - 4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

1

J916398

TUBE,50.8 mm OD x 700.1 mm L

Crossover

1шт.

2

J916438

INTAKE AIR HOSE

80 mm (3-1/8 in)

2шт.

3

214-1528

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm, W/ Liner

1-5/16 - 2-1/4 in

4шт.

4

REF

INSTRUCTION

Turbocharger Assy

1шт.

See Figure 2-30

1шт.

5

J919369

GASKET,0.5mm Thk

1шт.

6

J818823

STUD

4шт.

7

J818824

FLANGE NUT

4шт.

8

J912599

HOSE

1шт.

9

J918670

TUBE

1шт.

10

J937706

GASKET,0.79mm Thk

1шт.

Replaces J931350

1шт.

11

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

12

J286499

HOSE

76 mm (3")

1шт.

13

214-1512

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm, W/ Liner

2шт.

14

J919687

HYD CONNECTOR

2шт.

Incl. 15

1шт.

15

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

16

222-993

GASKET,3/8 Tube, Fl, Copper

2шт.

17

321702A1

CLAMP

1шт.

18

844-12035

BOLT,Hvy Hex, M12 x 35mm, Cl 8.8

1шт.

19

829-1412

NUT,M12, Cl 10.9

1шт.

20

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

3шт.

21

J910451

BRACE

1шт.

22

854-12050

BOLT,Hvy Hex, M12 x 50mm, Cl 10.9

1шт.

23

J913177

SPACER

1шт.

24

J910990

TUBE,64 mm ID x 72.64 mm OD x 40.50 mm L

1шт.

25

A170467

CLAMP,72mm ID

Includes Hardware

1шт.
