Запчасти Case 686G (2-22) - WATER PUMP SYSTEM - 4-390 AND 4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

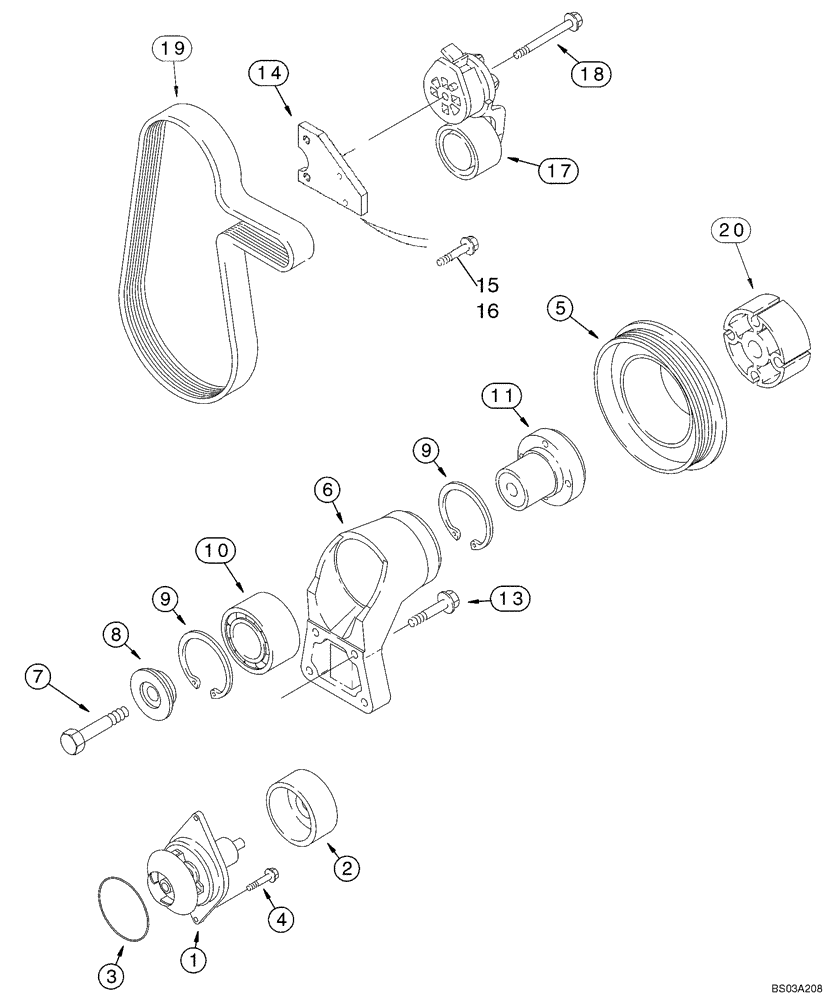

Схема запчастей Case 686G - (2-22) - WATER PUMP SYSTEM - 4-390 AND 4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE
17
15
16
9
8
20
5
13
18
10
4
7
6
11
9
19
2
3
1
14

Артикул

Название

Примечание

Количество

J286277

PUMP, WATER

KIT - water pump

1шт.

*

Incl. 1-3

1шт.

J286278R

REMAN-WATER PUMP

686G Series 2, 686G (5/99), 686G (6/98), 686GXR Series 2 (5/99-), 686GXR (6/98-), 688G Tier 2 (5/99-)

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

Pump Assy, Water

1шт.

2

NSS

NOT SOLD SEPARAT

Pulley

1шт.

2

J286278R

REMAN-WATER PUMP

686G Series 2, Replaces P/N J286277

1шт.

2

J286278C

CORE-WATER PUMP

Return Number

1шт.

3

J906698

RUBBER SEAL,Square, 5.16mm Thk x 88.27mm ID

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

5

J914463

PULLEY,165.25mm OD

1.1 to 1 Ratio

1шт.

J285947

SUPPORT

1шт.

*

Incl. 6 - 11

1шт.

6

NSS

NOT SOLD SEPARAT

Support

1шт.

7

J907769

BOLT,Hex, M10 x 70mm, Cl 12.9

1шт.

8

J923044

RETAINER

1шт.

9

100-21250

SNAP RING,2.50", Int, #250

2шт.

10

J910739

BALL BEARING,35mm ID x 64mm OD x 37mm W

1шт.

11

NSS

NOT SOLD SEPARAT

Hub

1шт.

13

J901221

BOLT

1шт.

13

844-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

3шт.

14

J286908

BRACKET

1шт.

*

Models With Engine 327008A2, 327010A2 or 87413347

1шт.

14

J286907

BRACKET

1шт.

*

Models With Engine 326995A2

1шт.

*

Not Illustrated

1шт.

15

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

Cl 10.9

2шт.

*

Models With Engine 327008A2, 327010A2 or 87413347

1шт.

16

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

1шт.

*

Models With Engine 326995A2

1шт.

17

J936203

BELT TENSIONER

Belt

1шт.

18

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

1шт.

*

Models With Engine 327008A2, 327010A2 or 87413347

1шт.

18

J282699

SPECIAL BOLT

1шт.

*

Models With Engine 326995A2

1шт.

19

J911587

V-BELT,27.92mm W x 1363.1mm L, 8 Ribs

1шт.

*

Models With Engine 327008A2, 327010A2 or 87413347

1шт.

19

J929330

BELT

V-BELT, Ribbed

1шт.

*

Models With Engine 326995A2

1шт.

20

J903817

SPACER

SPACER - fan

1шт.

*

For 4-390 Emissions Certified Engine

1шт.

20

J903818

SPACER

SPACER - fan

1шт.

*

For 4T-390 Emissions Certified Engine

1шт.

Выбрано товаров: 43
