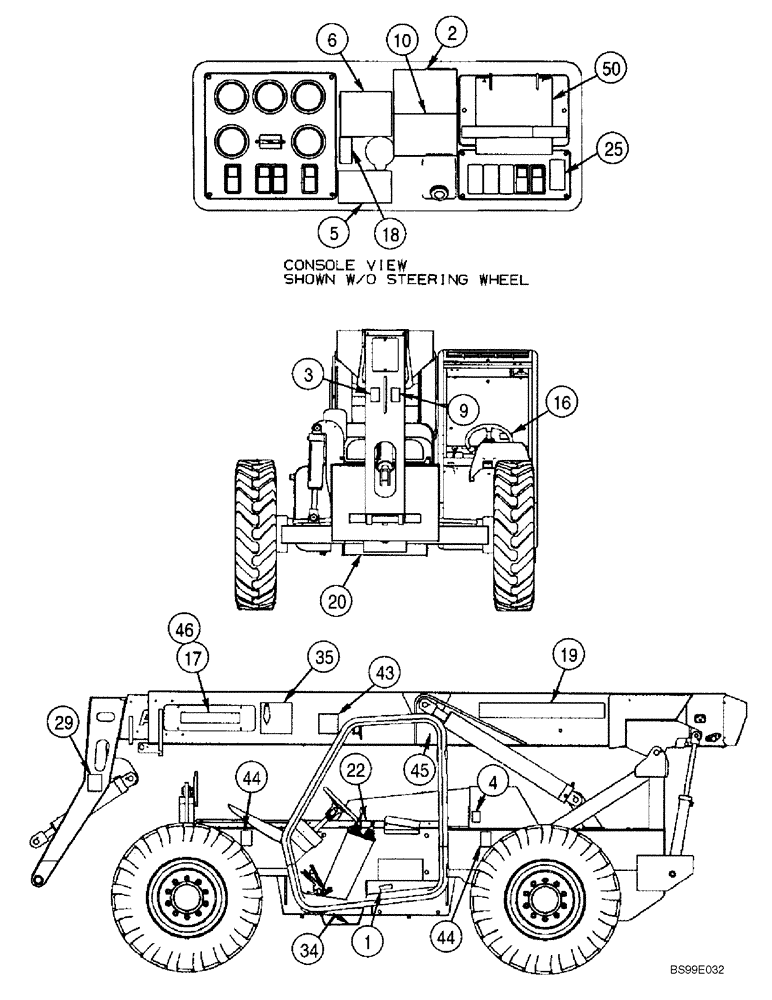

Запчасти Case 686G (9-58) - DECALS, LEFT-HAND SIDE (SERIES 2 686G; SERIES 2 BSN 686GXR JFE0001848; 688G BSN JFE0003613) (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
339624A1
DECAL
OSHA
1шт.
2
317365A1
DECAL
Warning, Rollover
1шт.
3
309579A1
DECAL
Falling Object
1шт.
4
317371A1
DECAL
Warning, Rotating Fan and Belts
1шт.
5
317705A1
DECAL
No Riders
1шт.
6
317368A1
DECAL
Operation, Maintainance and Safety Warning
1шт.
9
309580A1
DECAL
Falling Off
1шт.
10
317364A1
DECAL
Warning, Electrical Hazard
1шт.
16
317023A1
DECAL
Emergency Exit
1шт.
17
323203A1
DECAL
Model Identification
1шт.
For 686G
1шт.
17
353391A1
DECAL
Model Identification
1шт.
For 686GXR
1шт.
17
353392A1
DECAL
Model Identification
1шт.
For 688G
1шт.
18
317363A1
DECAL
Forward - Neutral - Reverse
1шт.
19
318191A1
DECAL
CASE, Left-hand
1шт.
For 686G and 68GXR
1шт.
19
356503A1
DECAL
CASE, Left-hand
1шт.
For 688G
1шт.
20
318182A1
DECAL
Model Identification, Rear
1шт.
22
310360A1
DECAL
Frame Level
1шт.
25
317361A1
DECAL
Steering Mode
1шт.
29
309280A1
DECAL
Carriage Shift
1шт.
34
317423A1
DECAL
Tread, Non-Slip
1шт.
35
317150A1
DECAL
Angle
1шт.
43
323204A1
DECAL
Striping
1шт.
For 686G
1шт.
43
318183A1
DECAL
Striping
1шт.
For 686GXR
1шт.
43
356505A1
DECAL
Striping
1шт.
For 688G
1шт.
44
360933A1
DECAL
Crush Are
2шт.
45
318185A1
DECAL
Striping
1шт.
For 686G and 686GXR
1шт.
45
356507A1
DECAL
Striping
1шт.
For 688G
1шт.
46
301343A1
DECAL
Series 2
1шт.
LOAD CHARTS FOR 686G SERIES 2
1шт.
50
368886A1
DECAL
Load Chart, Quick Attach Carriage, 1219, 1524, 1829 mm (48, 60, 72 in) Wide
1шт.
50
368888A1
DECAL
Load Chart, Quick Attach Carriage, Fork Positioning
1шт.
50
368887A1
DECAL
Load Chart, Quick Attach Carriage, Fork Tilt
1шт.
50
368889A1
DECAL
Load Chart, Bucket, 3/4 cu meter (1 cu yd)
1шт.
50
368890A1
DECAL
Load Chart, Truss Boom
1шт.
LOAD CHARTS FOR 686GXR SERIES 2
1шт.
50
368891A1
DECAL
Load Chart, Quick Attach Carriage, 1219, 1524, 1829 mm (48, 60, 72 in) Wide
1шт.
50
368893A1
DECAL
Load Chart, Quick Attach Carriage, Fork Positioning
1шт.
50
368892A1
DECAL
Load Chart, Quick Attach Carriage, Fork Tilt
1шт.
50
368895A1
DECAL
Load Chart, Bucket, 3/4 cu meter (1 cu yd)
1шт.
50
368897A1
DECAL
Load Chart, Truss Boom
1шт.
LOAD CHARTS FOR 688G SERIES 2
1шт.
50
429446A1
DECAL
Load Chart, Quick Attach Carriage, 1219, 1524, 1829 mm (48, 60, 72 in) Wide
1шт.
50
429448A1
DECAL
Load Chart, Quick Attach Carriage, Fork Tilt
1шт.
50
429447A1
DECAL
Load Chart, Bucket, 1-1/3 cu meter (1-3/4 cu yd)
1шт.
50
360965A1
DECAL
Load Chart, Truss Boom
1шт.
Выбрано товаров: 55
