Запчасти Case 686G (9-54) - DECALS, RIGHT-HAND SIDE (SERIES 2 686G; SERIES 2 BSN 686GXR JFE0001848; 688G BSN JFE0003613) (09) - CHASSIS/ATTACHMENTS

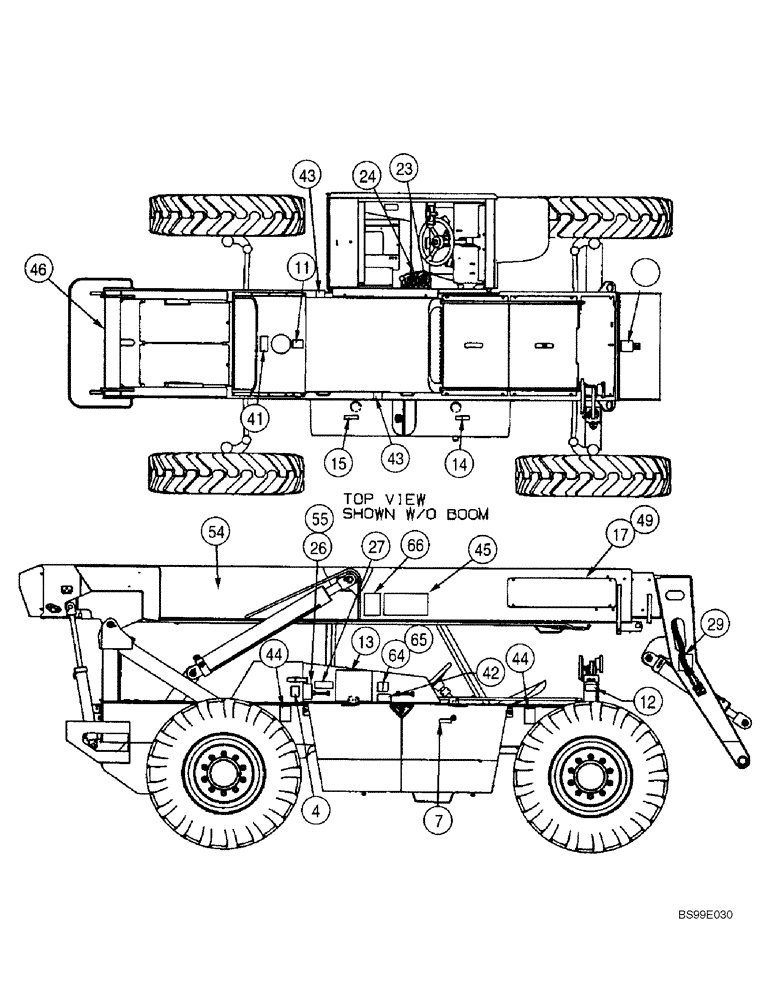

Схема запчастей Case 686G - (9-54) - DECALS, RIGHT-HAND SIDE (SERIES 2 686G; SERIES 2 BSN 686GXR JFE0001848; 688G BSN JFE0003613) (09) - CHASSIS/ATTACHMENTS
45
44
41
66
13
14
55
49
54
4
46
29
12
24
11
23
64
15
43
26
7
65
17
42
27
43
44

Артикул

Название

Примечание

Количество

4

317371A1

DECAL

Warning, Rotating Fan and Belt

1шт.

7

313410A1

DECAL

Hydraulic Oil Level

1шт.

8

309577A1

DECAL

Crush Warning

1шт.

11

317369A1

DECAL

Warning, Pressure Hazard

1шт.

12

310374A1

DECAL

Frame Tipping

1шт.

13

360898A1

DECAL

Lube Chart

1шт.

For 686G, Series 2

1шт.

13

360899A1

DECAL

Lube Chart

1шт.

For 686GXR, Series 2

1шт.

13

360958A1

DECAL

Lube Chart

1шт.

For 688G, Series 2

1шт.

14

310047A1

DECAL

Hydraulic Oil

1шт.

15

310015A1

DECAL

Fuel

1шт.

17

323203A1

DECAL

Model Identification

1шт.

For 686G, Series 2

1шт.

17

353391A1

DECAL

Model Identification

1шт.

For 686GXR, Series 2

1шт.

17

353392A1

DECAL

Model Identification

1шт.

For 686G, Series 2

1шт.

23

317359A1

DECAL

Front Controller

1шт.

24

317360A1

DECAL

Rear Controller

1шт.

26

309602A1

DECAL

Operation Warning

1шт.

27

360932A1

DECAL

Chart, Tire Inflation

1шт.

For 686G Series 2

1шт.

27

360932A1

DECAL

Chart, Tire Inflation

1шт.

For 686GXR Series 2

1шт.

27

360959A1

DECAL

Chart, Tire Inflation

1шт.

For 688G, Series 2

1шт.

29

309280A1

DECAL

Carriage Shift

1шт.

41

317706A1

DECAL

Procedure, Radiator Fill

1шт.

42

309599A1

DECAL

Unmetered Ether

1шт.

43

360292A1

DECAL

Moving Machine

2шт.

44

360933A1

DECAL

Crush Area

2шт.

45

318184A1

DECAL

Striping, Right Hand

1шт.

For 686GXR Series 2

1шт.

45

323205A1

DECAL

Striping

1шт.

For 686G Series 2

1шт.

45

356506A1

DECAL

Striping, Right Hand Front Boom

1шт.

For 688G Series 2

1шт.

46

357343A1

DECAL

CASE

1шт.

47

357344A1

DECAL

Danger, Starter

1шт.

Not Illustrated

1шт.

49

301343A1

DECAL

Series 2

1шт.

52

357345A1

DECAL

Starter Bypass

1шт.

Not Illustrated

1шт.

54

318192A1

DECAL

CASE, Right Hand

1шт.

For Series 686G or 686GXR

1шт.

54

356504A1

DECAL

CASE, Right Hand

1шт.

For 688G Series 2

1шт.

55

360305A1

DECAL

Rollover, Tire

1шт.

64

321-7040

DANGER DECAL

Starting in gear can cause death

1шт.

65

321-6872

DECAL

Warning, Wrong Jumper Cable

1шт.

66

356508A1

DECAL

Striping, Right Hand, Center Boom

1шт.

For 688G Series 2

1шт.

66

318188A1

DECAL

Striping, Right Hand, Center Boom

1шт.

For Series 2 686G or 686GXR

1шт.

Выбрано товаров: 56
