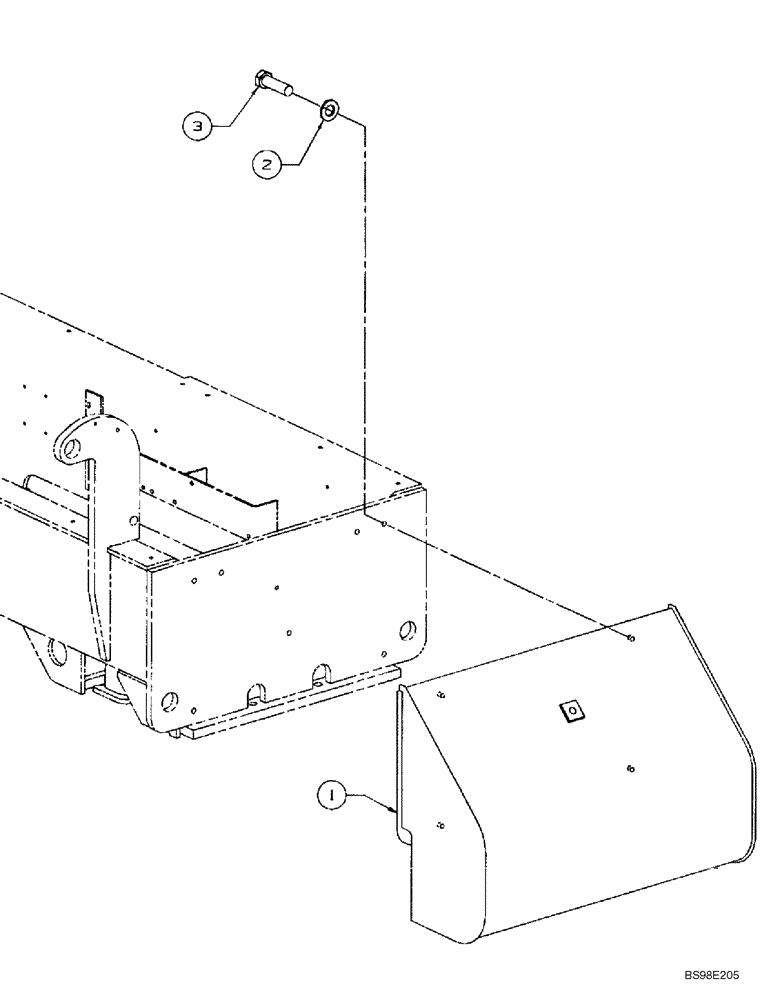

Запчасти Case 686G (9-50) - COUNTERWEIGHT (ALL 686G MODELS; BSN 686GXR JFE0001848; 688G JFE0003613) (09) - CHASSIS/ATTACHMENTS

1

367790A1

BOX

Counterweight

1шт.

All 686G Models

1шт.

686GXR Series 1

1шт.

Replaces 316295A1

1шт.

1

366225A1

BOX

Counterweight

1шт.

686GXR Series 2 (Prior To PIN JFE0001848)

1шт.

1

365126A1

BOX

Counterweight

1шт.

688G (Prior to PIN JFE0003613)

1шт.

2

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

3

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

4шт.

Used With 366225A1 Counterweight

1шт.

3

828-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

4шт.

Used With 367790A1 and 365126A1 Counterweight

1шт.
