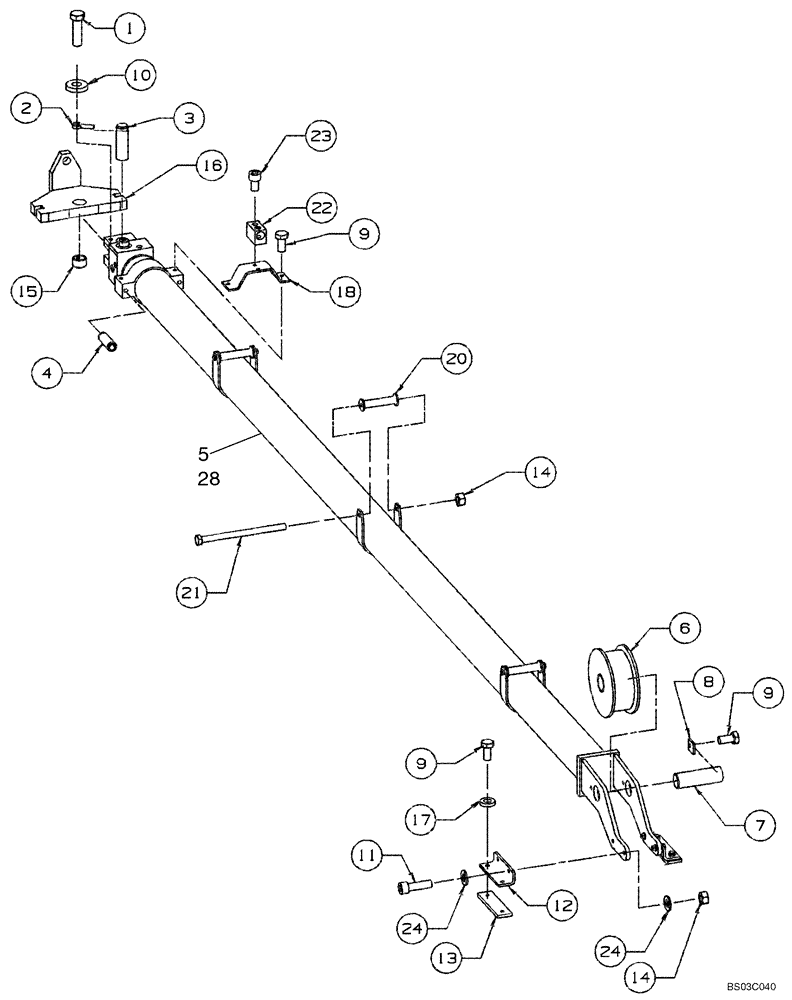

Запчасти Case 686G (9-38) - TELESCOPIC CROWD CYLINDER ASSEMBLY (09) - CHASSIS/ATTACHMENTS

1

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

1шт.

2

310379A1

BRACKET

0.500 Diameter

1шт.

3

317913A1

PIN

1шт.

4

38-13224

LOCK PIN,1/2" x 1 1/2", Slotted

1/2" x 1 1/2", Slotted

2шт.

5

326655A1

CYLINDER ASSY.

Telescopic Crowd

1шт.

All 686G Models

1шт.

Incl. 5A - 5C

1шт.

No Longer Used, Order 395870A1, REF 28

1шт.

5

317391A1

CYLINDER

Telescopic Crowd

1шт.

686GXR, 688G

1шт.

Incl. 5A - 5C

1шт.

No Longer Available, Order 380932A1, REF 28

1шт.

5a

317612A1

VALVE

Cartridge, Relief, Counterbalance

2шт.

Not Illustrated

1шт.

5b

317611A1

LOCK NUT

1шт.

Not Illustrated

1шт.

5c

317610A1

SEAL KIT

Seal

1шт.

Not Illustrated

1шт.

5d

366335A1

VALVE

Counterbalance, Retract

1шт.

380937A1 Adapter Sleeve Is Required For Correct Fit

1шт.

6

317068A1

SHEAVE

Chain, No Component Service Established

1шт.

686G Models Only

1шт.

6

363797A1

SHEAVE

Chain

1шт.

686GXR and 688G Models

1шт.

Incl. 6A - 6E

1шт.

6a

363817A1

BUSHING

Roller

1шт.

Not Illustrated

1шт.

6b

363818A1

SPACER

1шт.

Not Illustrated

1шт.

6c

363820A1

SHEAVE

1шт.

Not Illustrated

1шт.

6d

363821A1

ROLLER BEARING

Roller

2шт.

Not Illustrated

1шт.

6e

100-21256

SNAP RING,2.562", Int, #256

2шт.

Not Illustrated

1шт.

7

317071A1

PIN

1шт.

8

317072A1

PLATE

1шт.

No Longer Used

1шт.

9

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

7шт.

10

906059R1

WASHER,13mm ID x 30mm OD x 6mm Thk

1шт.

11

864-10035

HEX SOC SCREW,M10 x 35mm, Cl 8.8

M10 x 35

4шт.

12

317065A1

ANGLE

2шт.

13

430356A1

WEAR PAD

2шт.

Replaces 317058A1

1шт.

14

829-1410

NUT,M10 x 1.5, Cl 10.9

7шт.

15

314069A1

BUSHING

1шт.

16

317128A1

ANCHOR

1шт.

17

310089A1

WASHER

12шт.

18

317145A1

PLATE

1шт.

20

317389A1

SHEAVE

Chain Guard

3шт.

21

828-10150

BOLT,Hex, M10 x 1.5 x 150mm, Cl 10.9

M10 x 150

3шт.

22

317146A1

GUIDE

1шт.

23

864-10016

HEX SOC SCREW,M10 x 16mm, Cl 8.8

2шт.

25

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.

686G Models

1шт.

Not Illustrated

1шт.

25

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

686GXR and 688G Models

1шт.

Not Illustrated

1шт.

28

395870A1

CYLINDER

Telescopic Crowd

1шт.

686G Models

1шт.

Incl. 29 - 32

1шт.

28

380932A1

CYLINDER

Telescopic Crowd

1шт.

686GXR, 688G Models

1шт.

29

317612A1

VALVE

Counterbalance Extend

1шт.

Not Illustrated

1шт.

30

366335A1

VALVE

Counterbalance Retract

1шт.

Not Illustrated

1шт.

31

432318A1

SEAL KIT

Kit, Counterbalance Valve

1шт.

Not Illustrated

1шт.

32

432317A1

SEAL KIT

Kit, Crowd Cylinder Seal

1шт.

Not Illustrated

1шт.

33

440139A1

GLAND

1шт.

380932A1 Cylinder

1шт.

Not Illustrated

1шт.

24

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.
