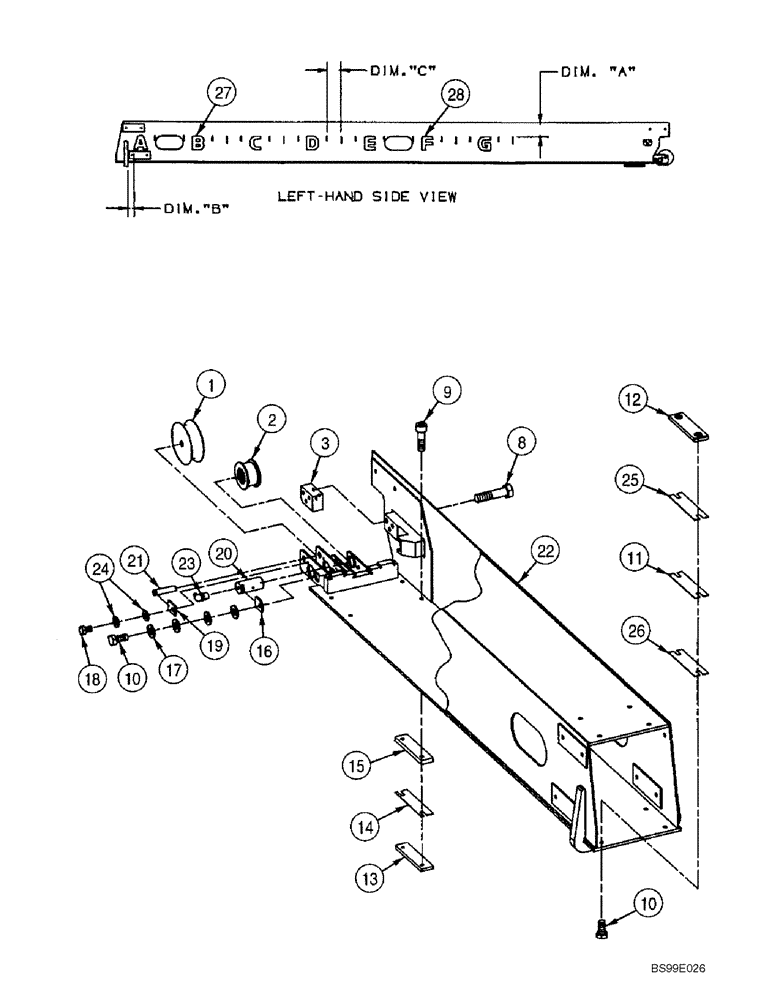

Запчасти Case 686G (9-34) - INTERMEDIATE BOOM SECTION ASSEMBLY (ALL 686G MODELS; BSN 686GXR JFE0001848; 688G JFE0003613) (09) - CHASSIS/ATTACHMENTS

1

432667A1

SHEAVE

1шт.

Replaces 317080A1

1шт.

2

336882A1

SHEAVE

Chain

1шт.

Incl. 2A - 2D

1шт.

2a

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

Not Illustrated

1шт.

2b

314092A1

RING, SNAP

RING SNAP

2шт.

Not Illustrated

1шт.

2c

314062A1

BEARING WASHER

1шт.

Not Illustrated

1шт.

2d

357856A1

SHEAVE

1шт.

Not Illustrated

1шт.

3

326641A1

BLOCK

Intermediate Boom

2шт.

8

426-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

6шт.

9

864-10035

HEX SOC SCREW,M10 x 35mm, Cl 8.8

M10 x 35

4шт.

10

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

12шт.

11

317062A1

SHIM

12шт.

12

430356A1

WEAR PAD

Inner

12шт.

Replaces 363783A1, 317058A1

1шт.

13

432658A1

WEAR PAD

Outer

2шт.

Replaces 317138A1

1шт.

14

317140A1

PLATE

2шт.

15

317139A1

PLATE, SPACER

PLATE,SPACER

2шт.

No Longer Used

1шт.

16

317072A1

PLATE

1шт.

18

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

19

318202A1

BAR

1шт.

20

367781A1

PIN

1шт.

21

314089A1

PIN

1шт.

22

372243A1

BOOM

Section, Intermediate

1шт.

All 686G Models

1шт.

22

317059A1

BOOM

Section, Intermediate

1шт.

686GXR (Prior To JFE0001848)

1шт.

22

365292A1

BOOM

Section, Intermediate

1шт.

688G (Prior To JFE0003613)

1шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

686G Models

1шт.

23

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.

686GXR and 688G Models

1шт.

24

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm

1шт.

25

317393A1

PLATE

2шт.

26

317414A1

PLATE

5шт.

27

317154A1

DECAL

ABCD

1шт.

28

388286A1

DECAL

EFG

1шт.

All 686G Models

1шт.

28

317155A1

DECAL

EFG

1шт.

686GXR and 688G Models

1шт.

29

614-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

9шт.

Not Illustrated

1шт.

17

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.
