(2-16) - AIR CLEANER ASSEMBLIES - TURBOCHARGED ENGINE

Запчасти Case 686G (2-16) - AIR CLEANER ASSEMBLIES - TURBOCHARGED ENGINE (02) - ENGINE

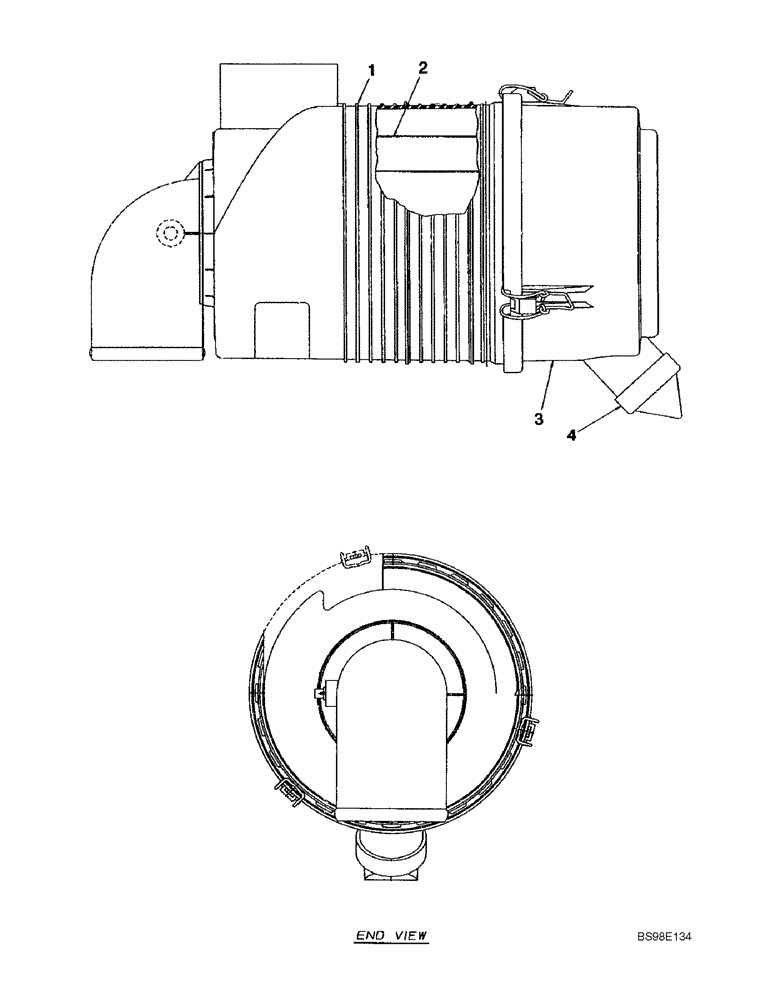

Схема запчастей Case 686G - (2-16) - AIR CLEANER ASSEMBLIES - TURBOCHARGED ENGINE (02) - ENGINE
1
4
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

317010A1

AIR FILTER

1шт.

Incl. 1 - 4

1шт.

For All Models Except 688G Series 2 With Turbocharged Engine

1шт.

366559A1

CLEANER ASSY.

Air

1шт.

Incl. 1 - 5

1шт.

For 688G Series 2 With Turbocharged Engine

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

2

222421A1

AIR FILTER

Primary

1шт.

3

317592A1

COVER

1шт.

4

317593A1

VALVE

Air Intake

1шт.

5

366557A1

ELEMENT

Secondary

1шт.

For 366559A1 Cleaner Assembly Only

1шт.

Not Illustrated

1шт.
