Запчасти Case 686G (9-23B) - ENCLOSED CAB, WINDOW RELATED PARTS (SERIES 2 686G, 686GXR AND 688G) (09) - CHASSIS/ATTACHMENTS

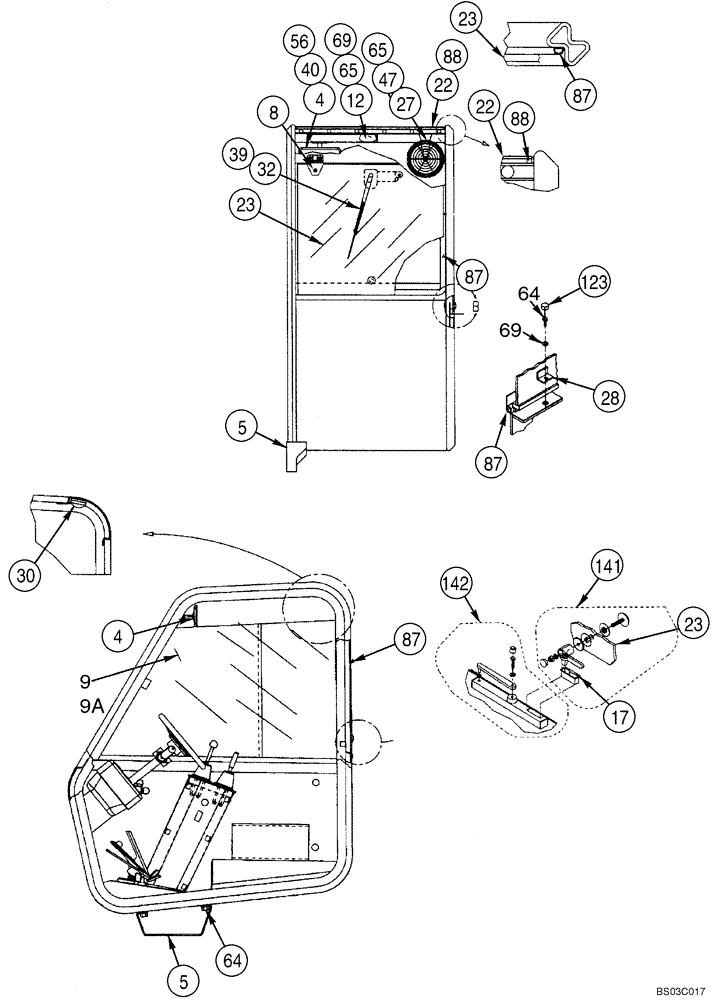

Схема запчастей Case 686G - (9-23B) - ENCLOSED CAB, WINDOW RELATED PARTS (SERIES 2 686G, 686GXR AND 688G) (09) - CHASSIS/ATTACHMENTS
88
88
141
5
23
28
40
65
64
8
12
22
87
9a
22
23
27
4
23
9
32
65
87
4
47
39
69
56
87
123
5
17
64
87
142
69
30

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

Cab Assy, Operators, Enclosed

1шт.

For Series 2 686G, 686GXR and 688G

1шт.

Incl. 4 - 142

1шт.

Also Includes Parts On Figure 9-23 - 9-23C

1шт.

4

317858A1

MIRROR

Rear View

1шт.

4-3/8 x 8-5/16 (Old Mirror)

1шт.

5-5/8 x 7-11/16 (New Mirror)

1шт.

Same Part number, New Mirror Will Fit In Place of Old Mirror

1шт.

5

356405A1

STEP

Cab

1шт.

8

317868A1

HINGE

Window

4шт.

Does Not Include Hardware

1шт.

Order 365457A1 For Window Hinge With Hardware

1шт.

9

317861A1

WINDOW

Sliding, Right Hand

1шт.

9a

86992572

HANDLE

1шт.

With 317861A1

1шт.

12

367263A1

GAUGE

Leveling

1шт.

22

358907A1

GLASS

Top

1шт.

23

358223A1

GLASS

Rear Window

1шт.

27

317875A1

FAN

Defroster

1шт.

28

317876A1

BRACKET

Side Window

2шт.

32

367269A1

ARM

Wiper

1шт.

39

367278A1

WIPER BLADE

BLADE, WIPER

1шт.

40

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

1шт.

47

REF

INSTRUCTION

Screw, Allen

4шт.

56

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

60

367281A1

WASHER

1шт.

64

614-5012

BOLT,Hex, M5 x 0.8 x 12mm, Cl 8.8, Full Thd

1шт.

65

895-12018

WASHER,M18 x 34 x 3

20 x 34 x 3 mm

1шт.

69

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

1шт.

87

365453A1

SEAL, GLASS

1шт.

Used to Seal 317861A1 Window

1шт.

88

367287A1

SEAL, GLASS

1шт.

115

365447A1

CAP

1шт.

141

365455A1

KIT

Window Latch

1шт.

141a

317866A1

CONTAINER

1шт.

142

365456A1

KIT

Window Brace

1шт.

Выбрано товаров: 36
