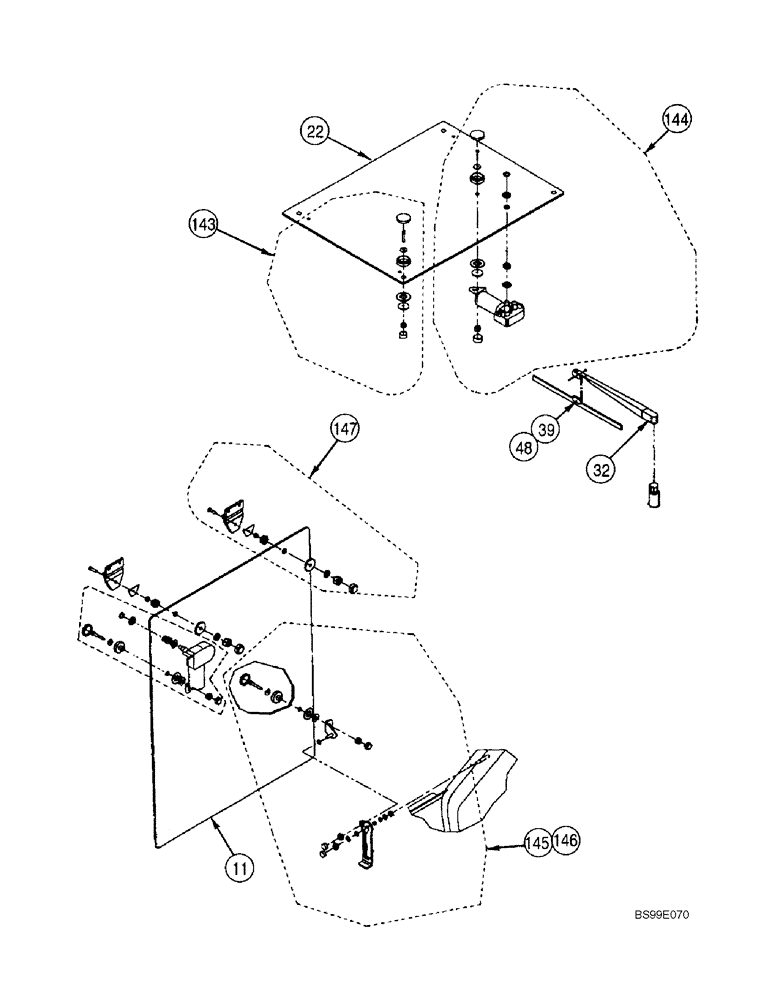

Запчасти Case 686G (9-23A) - ENCLOSED CAB, WINDOW AND WIPER KITS (SERIES 2 686G, 686GXR AND 688G) (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

Cab Assy, Operators, Enclosed

1шт.

For Series 2 686G, 686GXR and 688G

1шт.

Incl. 11 - 147

1шт.

Also Includes Parts On Figures 9-23 - 9-23C

1шт.

11

359830A1

GLASS

Front, 29.19 x 37.22

1шт.

Units With Factory Installed ROPS Enclosure

1шт.

11

87413499

GLASS

Front, 29.38 x 34.50

1шт.

11

389397A1

GLASS

Front, 29.18 x 37.22

1шт.

Units With Field Installed ROPS Enclosure

1шт.

22

358907A1

GLASS

Top

1шт.

32

367269A1

ARM

Wiper

3шт.

39

367278A1

WIPER BLADE

BLADE, WIPER Top and Rear Glass

2шт.

48

367280A1

WIPER BLADE

BLADE, WIPER Front Glass

1шт.

143

367300A1

MOUNTING PARTS

Kit, Top Window

1шт.

Four In A Kit

1шт.

144

367301A1

KIT

Wiper Motor

1шт.

Hardware Included

1шт.

145

367302A1

PACKAGE

Window Pivot, Right Hand

1шт.

146

367303A1

PACKAGE

Window Pivot, Left Hand

1шт.

147

365457A1

KIT

Window Hinge

2шт.

Hardware Included

1шт.
