Запчасти Case 686G (9-18) - OPEN CAB, WINDOW KITS (09) - CHASSIS/ATTACHMENTS

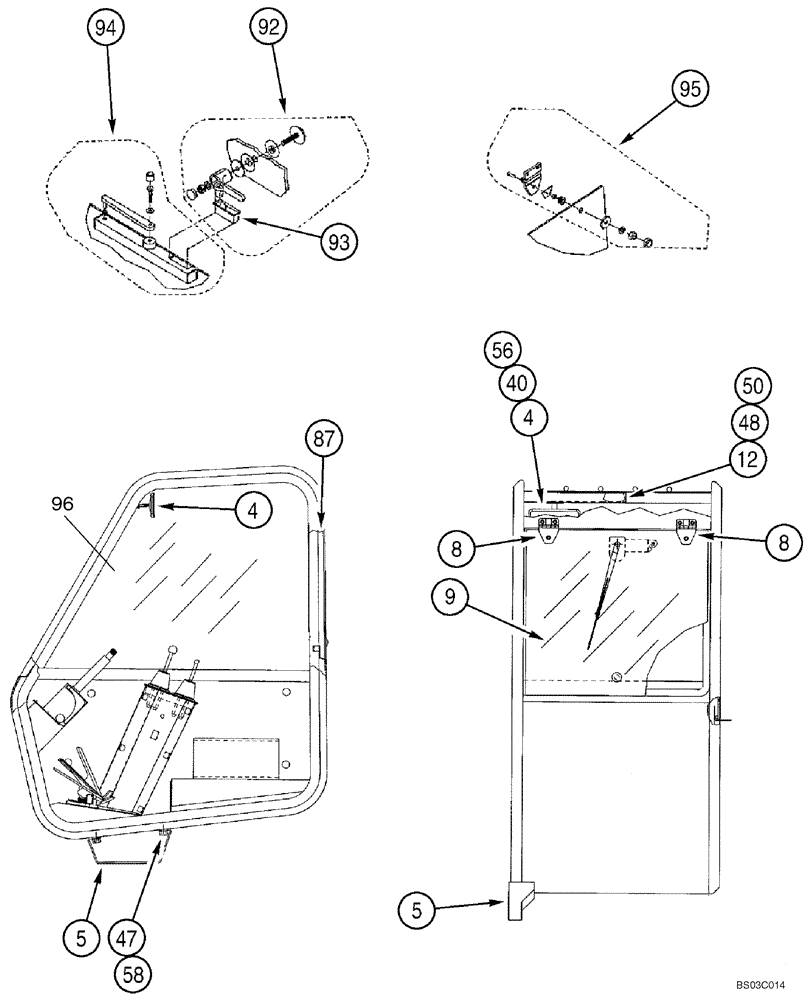

Схема запчастей Case 686G - (9-18) - OPEN CAB, WINDOW KITS (09) - CHASSIS/ATTACHMENTS
8
48
5
5
9
12
50
87
56
95
58
47
4
94
92
93
40
96
4
8

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

Cab Assy, Operators, Open

1шт.

686G and 686GXR

1шт.

Component Information Not Available At Time Of Printing Except For Rear Window

1шт.

See REF 9 Below

1шт.

REF

INSTRUCTION

Cab Assy, Operators, Open

1шт.

Series 2 Models

1шт.

See Figures 9-16, 9-18

1шт.

Incl. 4 - 95

1шт.

4

317858A1

MIRROR

Rear View

1шт.

4-3/8 x 8-5/16 (Old Mirror)

1шт.

5-5/8 x 7-11/16 (New Mirror)

1шт.

Same Part number, New Mirror Will Fit In Place of Old Mirror

1шт.

5

356405A1

STEP

Cab

1шт.

8

317868A1

HINGE

Rear Windo

2шт.

9

317880A1

GLASS

Cab, Rear Window

1шт.

12

314073A1

GAUGE

Leveling

1шт.

40

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

1шт.

47

614-18035

BOLT,Hex, M18 x 2.5 x 35mm, Cl 8.8, Full Thd

M18 x 35

4шт.

48

614-5012

BOLT,Hex, M5 x 0.8 x 12mm, Cl 8.8, Full Thd

1шт.

50

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

1шт.

56

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

58

895-12018

WASHER,M18 x 34 x 3

20 x 34 x 3 mm

4шт.

87

365453A1

SEAL, GLASS

Window

1шт.

All Windows

1шт.

92

317864A1

KIT

Latch

1шт.

All Models Except 688G Series 2

1шт.

92

365455A1

KIT

Latch

1шт.

For 688G Series 2

1шт.

Incl. 93

1шт.

93

317866A1

CONTAINER

1шт.

94

365456A1

KIT

Window Brace

1шт.

95

365457A1

KIT

Window Hinge

2шт.

96

391927A1

WINDOW ASSY

1шт.

Right Hand Side

1шт.

97

409505A1

SEAL

1шт.

Glass To Side Wall

1шт.

Not Illustrated

1шт.

98

317876A1

BRACKET

2шт.

See Figure 9-20, REF 28

1шт.

Mounting Hardware

1шт.

Not Illustrated

1шт.

Выбрано товаров: 41
