Запчасти Case 686G (9-16) - OPEN CAB, SEAT SUPPORT AND PANELS (SERIES 2 686G, 686GXR AND 688G) (09) - CHASSIS/ATTACHMENTS

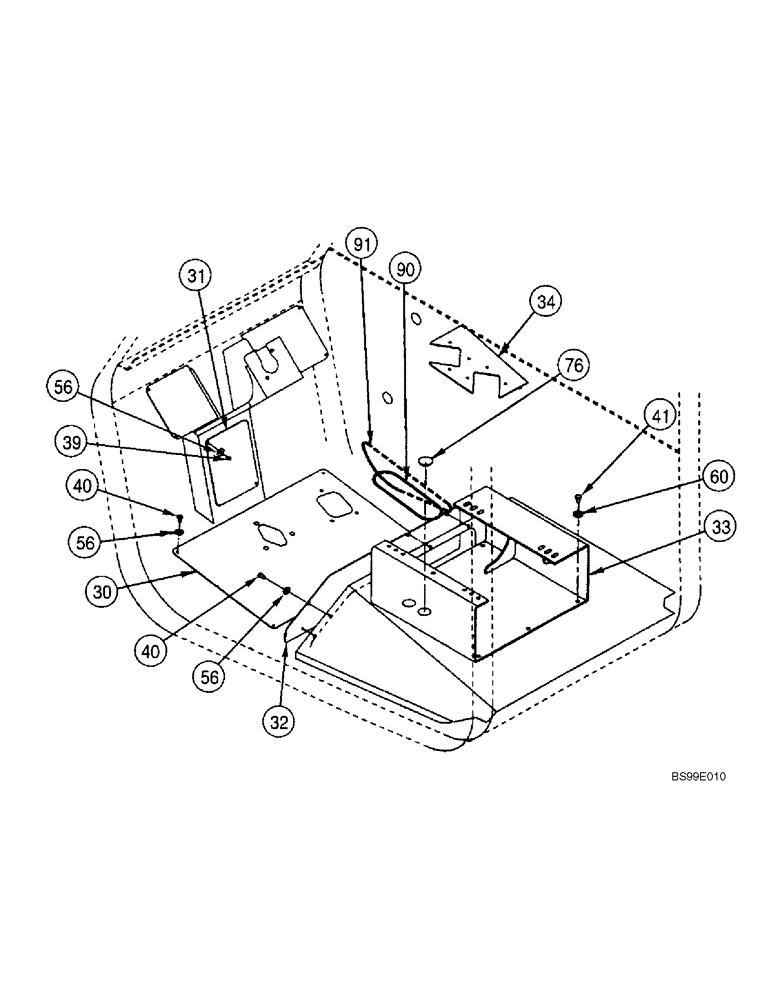

Схема запчастей Case 686G - (9-16) - OPEN CAB, SEAT SUPPORT AND PANELS (SERIES 2 686G, 686GXR AND 688G) (09) - CHASSIS/ATTACHMENTS
40
56
41
76
90
31
40
34
60
32
33
56
56
30
39
91

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

Cab Assy, Operators, Open

1шт.

Series 2 Models

1шт.

See Figures 9-14 and 9-18

1шт.

Incl. 30 - 91

1шт.

30

365431A1

PANEL

Floor, Pedal Mounting

1шт.

31

365432A1

PANEL

Lower Console

1шт.

32

365434A1

PANEL

Heater

1шт.

33

365437A1

SUPPORT

Seat

1шт.

34

365440A1

PANEL

Lift control

1шт.

39

614-6010

BOLT,Hex, M6 x 1 x 10mm, Cl 8.8, Full Thd

2шт.

40

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

8шт.

41

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

6шт.

56

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

10шт.

60

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm

6шт.

76

REF

INSTRUCTION

Plug

2шт.

90

365448A1

GROMMET

1шт.

91

365449A1

GROMMET

1шт.

Выбрано товаров: 17
