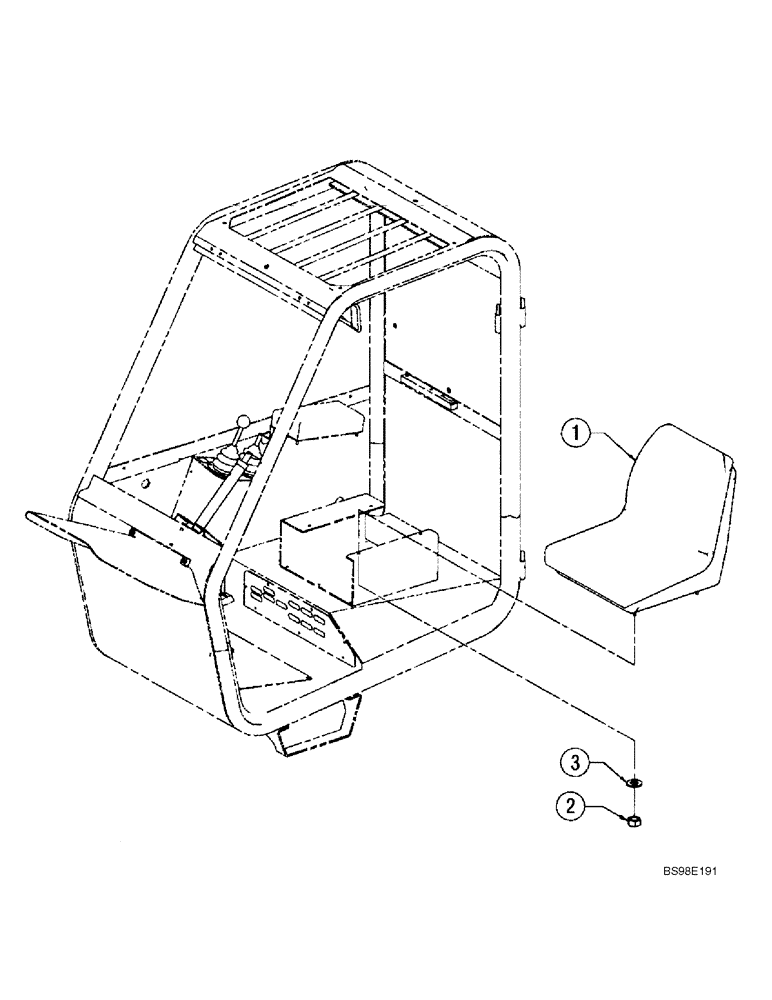

/ / / / / / / / (9-08) - SEAT OPTIONS AND MOUNTING
Запчасти Case 686G (9-08) - SEAT OPTIONS AND MOUNTING (09) - CHASSIS/ATTACHMENTS
1
2
3
1
REF
INSTRUCTION
Seat Assy, Operators
1шт.
Standard
1шт.
See Figure 09-10
1шт.
1
REF
INSTRUCTION
Seat Assy, Operators
1шт.
Suspension
1шт.
See Figure 09-12
1шт.
2
425-105
NUT,5/16"-18, G5
4шт.
3
318492A1
WASHER
4шт.
4
451362A1
ARMREST
Right Hand
1шт.
Not Illustrated
1шт.
