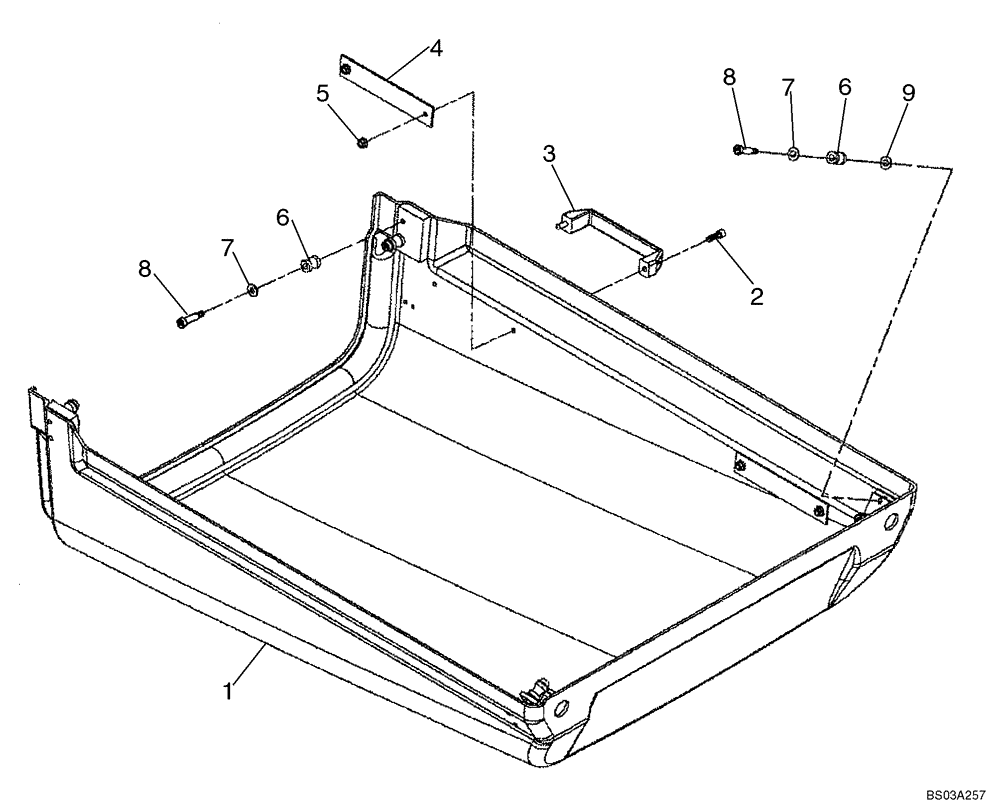

Запчасти Case 686G (9-05A) - ENGINE COVER (SERIES 2 ASN 686G JFE0000705; 686GXR JFE0001847; 688G PIN JFE0003612) (09) - CHASSIS/ATTACHMENTS

1

450006A1

COVER

Front, Engine

1шт.

2

365192A1

SCREW

4шт.

3

365118A1

HANDLE

Plastic Pull

2шт.

4

450009A1

BACKING PLATE

2шт.

5

825-5148

SERRATED NUT,M8, Flg Ser

4шт.

6

316275A1

ROLLER

8шт.

8

561-704

HEX SOC SCREW,M8 x 32.4, 10 x 30mm shldr, Cl 12.9

8шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

7

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.
