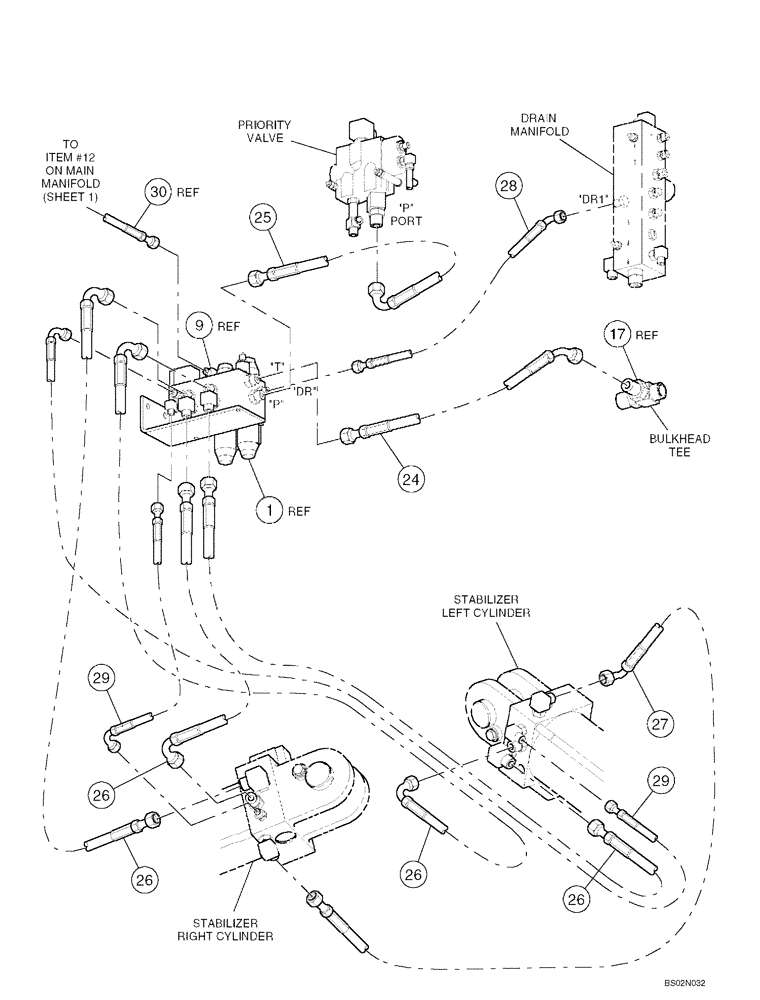

Запчасти Case 686G (8-53) - STABLIZER HYDRAULICS (SERIES 2 ASN 686G JFE0000705; 686GXR JFE0001847; 688G JFE0003612) (08) - HYDRAULICS

1

451569A1

MANIFOLD

Manifold, Stabilizer Control

1шт.

Component Parts Not Available At Time Of Printing

1шт.

9

87419103

ADAPTER

Adapter

1шт.

Replaces 369731A1

1шт.

17

87419104

HOSE ASSY.

Reducer

1шт.

Replaces 451571A1

1шт.

24

451571A1

HOSE ASSY.

1шт.

25

451572A1

HOSE ASSY.

1шт.

26

369735A1

HOSE ASSY.

4шт.

27

369736A1

HOSE ASSY.

1шт.

28

451573A1

HOSE ASSY.

1шт.

29

369738A1

HOSE ASSY.

2шт.

30

451574A1

HOSE ASSY.

1шт.
