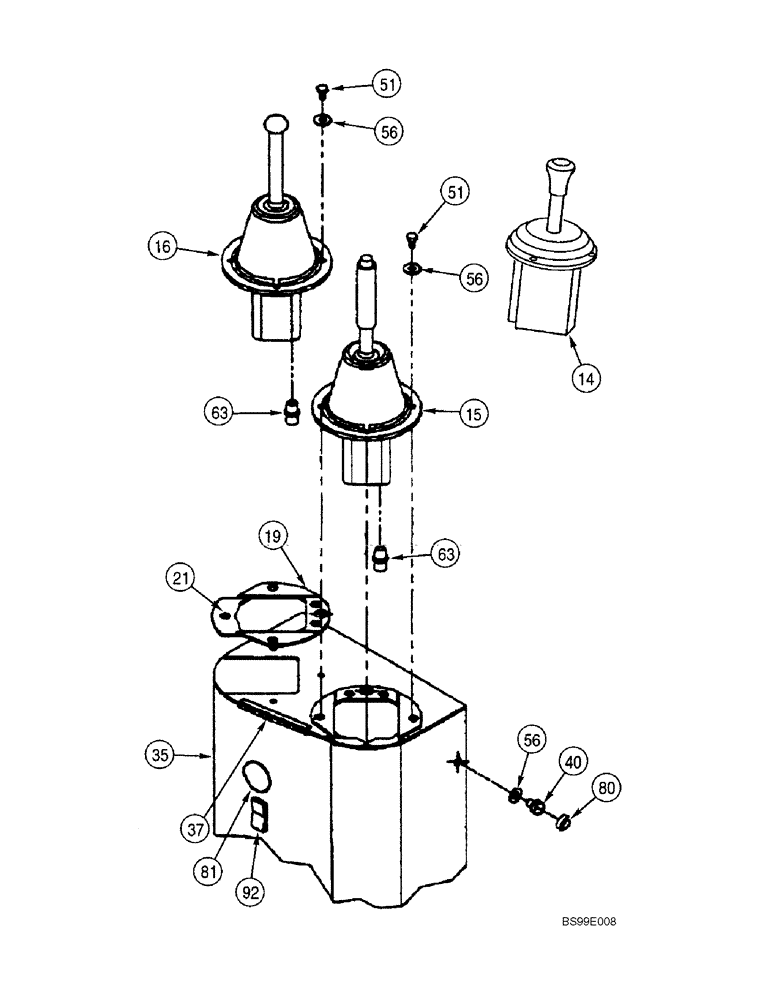

Запчасти Case 686G (8-36) - CONTROLLER VALVES (08) - HYDRAULICS

14

317032A1

CONTROL

Valve Assy

1шт.

Frame Level and Fork Tilt

1шт.

Incl. 14A - 14E

1шт.

For 686G or 686GXR, Series 1

1шт.

14a

317616A1

RETAINER

Spring, Ports #1 and #3

2шт.

Not Illustrated

1шт.

14b

317617A1

RETAINER

Spring, Ports #2 and #4

2шт.

Not Illustrated

1шт.

14c

317615A1

BOOT

Control Rod

1шт.

Not Illustrated

1шт.

14d

317613A1

SEAL KIT

Seal, Valve

1шт.

Not Illustrated

1шт.

14e

317125A1

KNOB

Control, Yellow

1шт.

Not Illustrated

1шт.

15

365422A1

CONTROL

Valve Assy

1шт.

Frame Level and Fork Tilt

1шт.

Incl. 15A - 15D

1шт.

For Series 2 models

1шт.

15a

365424A1

HANDLE

With Switch

1шт.

Not Illustrated

1шт.

15b

365427A1

PLATE

Mounting

1шт.

Not Illustrated

1шт.

15c

317615A1

BOOT

Control Rod

1шт.

Not Illustrated

1шт.

15d

317613A1

SEAL KIT

Seal, Valve

1шт.

Not Illustrated

1шт.

16

317031A1

CONTROL

Valve Assy

1шт.

Boom Raise and Lower, Extend and Retract

1шт.

Incl 16A - 16D

1шт.

All Series 1 and 2 Units

1шт.

16a

412271A1

SPRING

Centering

1шт.

Incl. 16B

1шт.

16b

317614A1

RETAINER

Spring

4шт.

Not Illustrated

1шт.

16c

317615A1

BOOT

Control Rod

1шт.

Not Illustrated

1шт.

16d

317613A1

SEAL KIT

Seal, Valve

1шт.

Not Illustrated

1шт.

16e

327428A1

KNOB

Control, Black

1шт.

Not Illustrated

1шт.

19

367283A1

SPACER

2шт.

21

365429A1

SPACER

2шт.

35

365442A1

COVER

1шт.

Series 2 Models With Open Cab

1шт.

35

367272A1

COVER

1шт.

Series 2 Models With Enclosed Cab

1шт.

37

365443A1

ORNAMENTAL STRIP

1шт.

40

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

4шт.

51

905-6020

BOLT,Hex Flg, M6 x 20mm

M6 x 20

8шт.

56

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

12шт.

63

309970A1

ADAPTER

8шт.

80

365447A1

CAP

4шт.

81

310302A1

SWITCH

Heater

1шт.

92

367288A1

SWITCH

Wiper

1шт.
