(8-32) - CYLINDER HYDRAULIC LINE FITTINGS, LIFT AND CROWD (SERIES 1 & 2 686G; SERIES 1 686GXR)

Запчасти Case 686G (8-32) - CYLINDER HYDRAULIC LINE FITTINGS, LIFT AND CROWD (SERIES 1 & 2 686G; SERIES 1 686GXR) (08) - HYDRAULICS

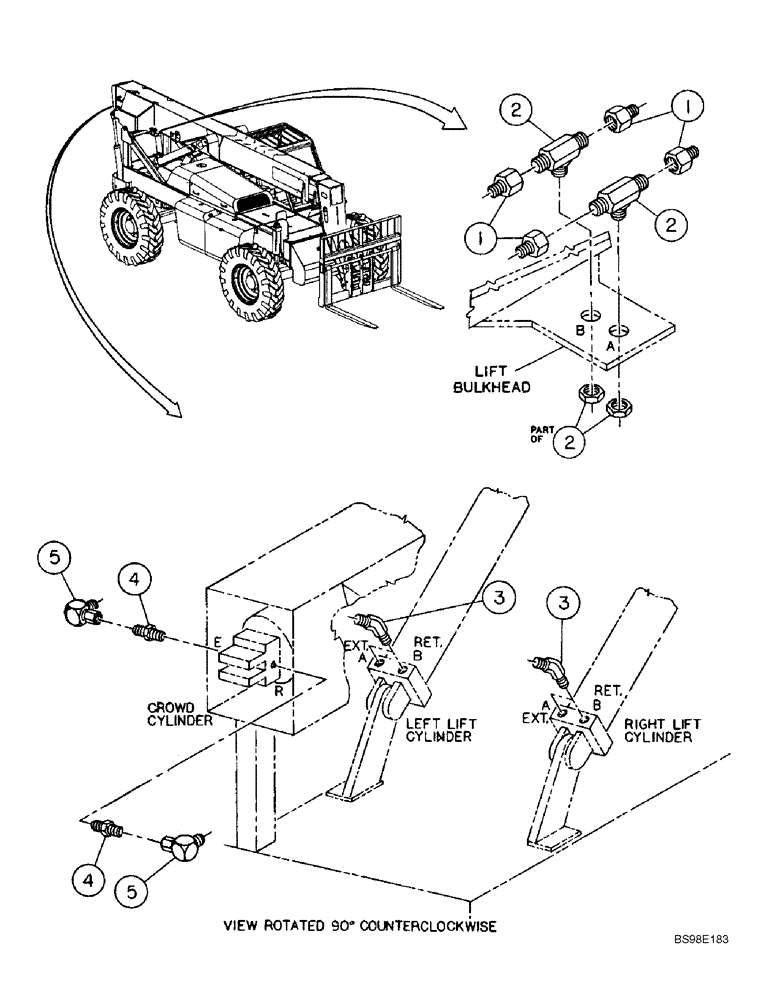

Схема запчастей Case 686G - (8-32) - CYLINDER HYDRAULIC LINE FITTINGS, LIFT AND CROWD (SERIES 1 & 2 686G; SERIES 1 686GXR) (08) - HYDRAULICS
2
5
5
4
2
1
3
3
2
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

318100A1

REDUCER

4шт.

2

315219A1

TEE

2шт.

Includes 238-6018 O-ring

1шт.

3

309972A1

ADAPTER

4шт.

4

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 in fl x Or

2шт.

5

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

2шт.

Выбрано товаров: 6
