(8-21) - HYDRAULIC DRAIN MANIFOLD AND FITTINGS (ASN 686G JFE0000705; 686GXR JFE0001847; 688G JFE0003612)

Запчасти Case 686G (8-21) - HYDRAULIC DRAIN MANIFOLD AND FITTINGS (ASN 686G JFE0000705; 686GXR JFE0001847; 688G JFE0003612) (08) - HYDRAULICS

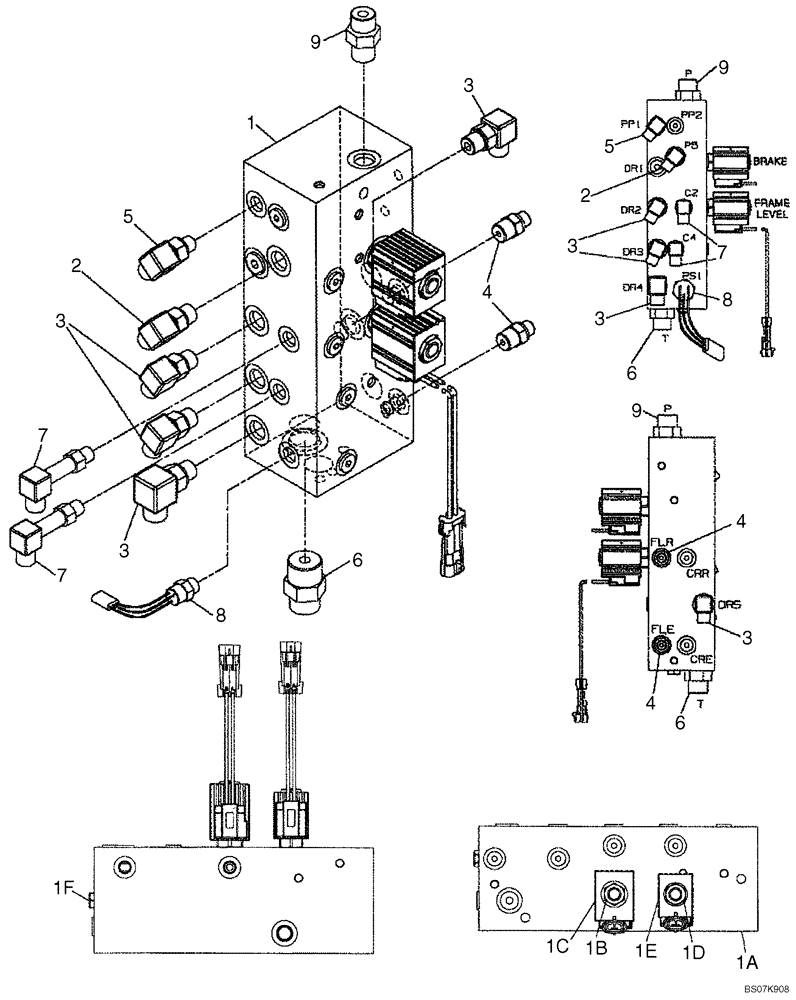

Схема запчастей Case 686G - (8-21) - HYDRAULIC DRAIN MANIFOLD AND FITTINGS (ASN 686G JFE0000705; 686GXR JFE0001847; 688G JFE0003612) (08) - HYDRAULICS
4
8
9
6
7
1f
5
7
3
6
6
1e
1a
9
7
8
3
1c
3
4
1
2
3
3
5
1d
3
4
2
1b
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

451587A1

MANIFOLD

Drain; Includes 1A - 1F

1шт.

1a

NSS

NOT SOLD SEPARAT

MANIFOLD; Block

1шт.

1b

87422546

HYDRAULIC VALVE

Cartridge, Large Coil; Includes 87422547 Seal Kit

1шт.

87422547

SEAL KIT

Large Valve Cartridge

1шт.

1c

87422548

COIL

Large

1шт.

1d

87416223

CARTRIDGE

Valve Cartridge, Small Coil; Includes 87422549 Seal Kit

1шт.

87422549

SEAL KIT

Small Coil

1шт.

1e

87422550

COIL

Small

1шт.

1f

87422551

HYDRAULIC VALVE

Includes 87422552 Seal Kit

1шт.

87422552

SEAL KIT

Ref 1F Valve

1шт.

2

309959A1

ADAPTER

90 deg

1шт.

3

309961A1

ADAPTER

90 deg

4шт.

4

309942A1

ADAPTER

Straight

2шт.

5

309962A1

ADAPTER

90 deg

1шт.

6

318087A1

ADAPTER

Straight

1шт.

7

317893A1

ADAPTER

90 deg

2шт.

8

451588A1

SWITCH

Pressure

1шт.

9

309970A1

ADAPTER

Straight

1шт.
