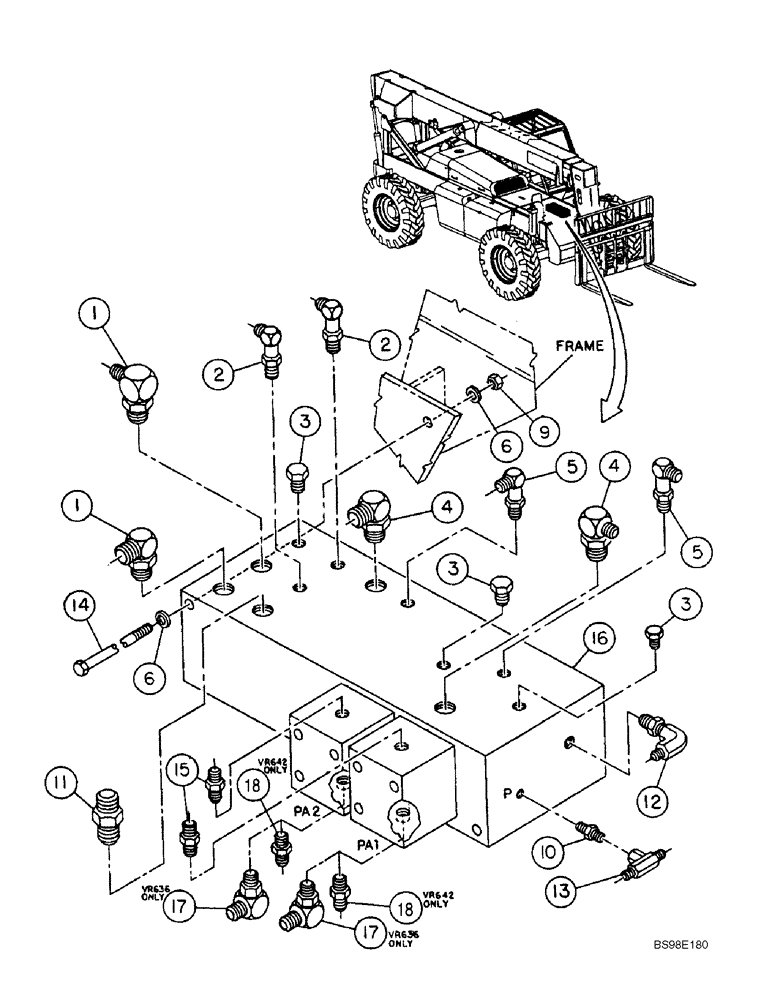

Запчасти Case 686G (8-16) - MAIN HYDRAULIC MANIFOLD AND FITTINGS (SERIES 1 AND 2 686G, SERIES 1 686GXR) (08) - HYDRAULICS

1

309960A1

ADAPTER

2шт.

2

317893A1

ADAPTER

2шт.

3

9672438

PLUG,7/16" - 20 ORB

3шт.

4

309959A1

ADAPTER

2шт.

5

317895A1

ADAPTER

1шт.

6

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

4шт.

9

232-1446

NUT,3/8"-16, GC

2шт.

10

309968A1

ADAPTER

1шт.

11

309982A1

ADAPTER

1шт.

12

309956A1

ADAPTER

1шт.

13

318098A1

TEE

1шт.

14

426-680

BOLT,Hex, 3/8" - 16 x 5", Gr 8

3/8 x 5 in

2шт.

15

309942A1

ADAPTER

2шт.

16

317038A1

MANIFOLD VALVE

Manifold Assy, Frame Level and Fork Tilt

1шт.

Series 1 686G and 686GXR

1шт.

See Figure 8-38

1шт.

16

393836A1

MANIFOLD VALVE

Frame Level and Fork Tilt

1шт.

Series 2 686G

1шт.

See Figure 8-41

1шт.

17

309962A1

ADAPTER

2шт.

For 686G Only

1шт.

18

309942A1

ADAPTER

2шт.

For 686GXR Only

1шт.
