(8-14B) - VALVE ASSY - LIFT AND CROWD (ASN 686G JFE0000705; 686GXR JFE0001847; 688G JFE0003612)

Запчасти Case 686G (8-14B) - VALVE ASSY - LIFT AND CROWD (ASN 686G JFE0000705; 686GXR JFE0001847; 688G JFE0003612) (08) - HYDRAULICS

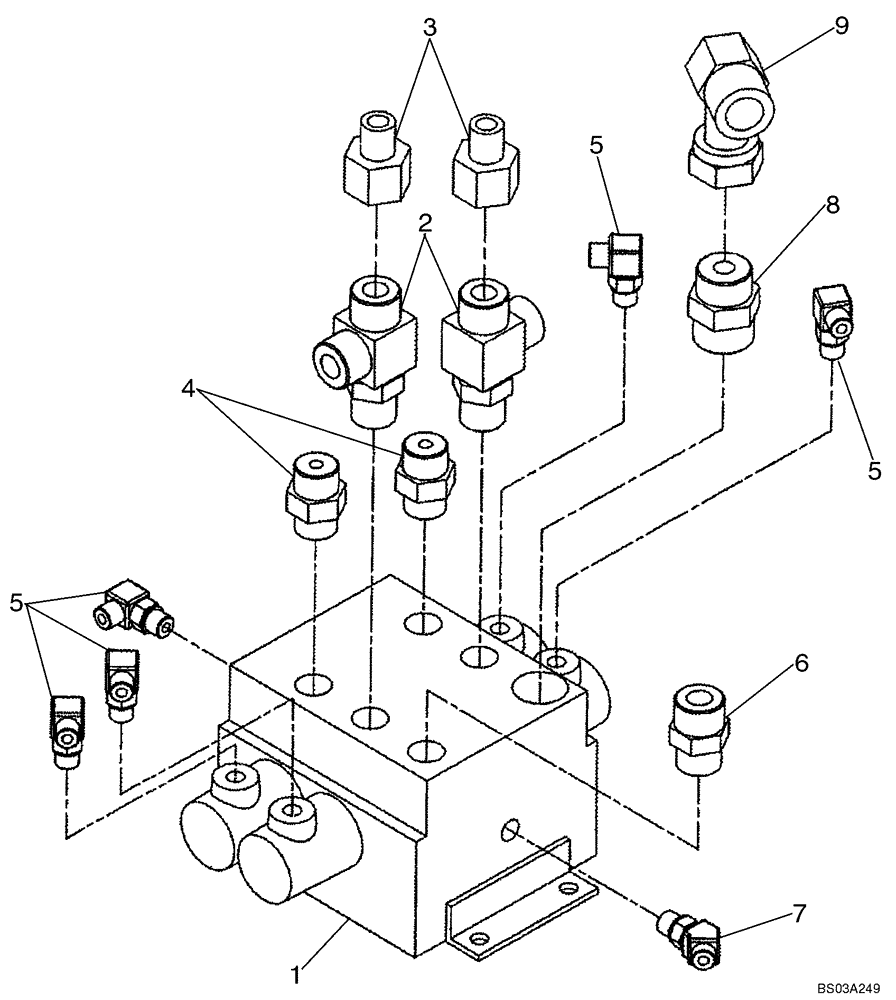

Схема запчастей Case 686G - (8-14B) - VALVE ASSY - LIFT AND CROWD (ASN 686G JFE0000705; 686GXR JFE0001847; 688G JFE0003612) (08) - HYDRAULICS
6
5
2
3
8
5
9
1
7
4
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

450640A1

VALVE

Lift and Crowd

1шт.

Component Parts Not Serviced Separately

1шт.

See Figure 8-14A For Mounting

1шт.

See Figure 8-14C For Lift and Crowd Hoses

1шт.

2

369732A1

ADAPTER

2шт.

3

318100A1

REDUCER

2шт.

4

318088A1

ADAPTER

2шт.

5

309961A1

ADAPTER

5шт.

6

318090A1

ADAPTER

1шт.

7

364311A1

PLUG

1шт.

8

309965A1

ADAPTER

1шт.

9

318096A1

ADAPTER

1шт.

Выбрано товаров: 12
