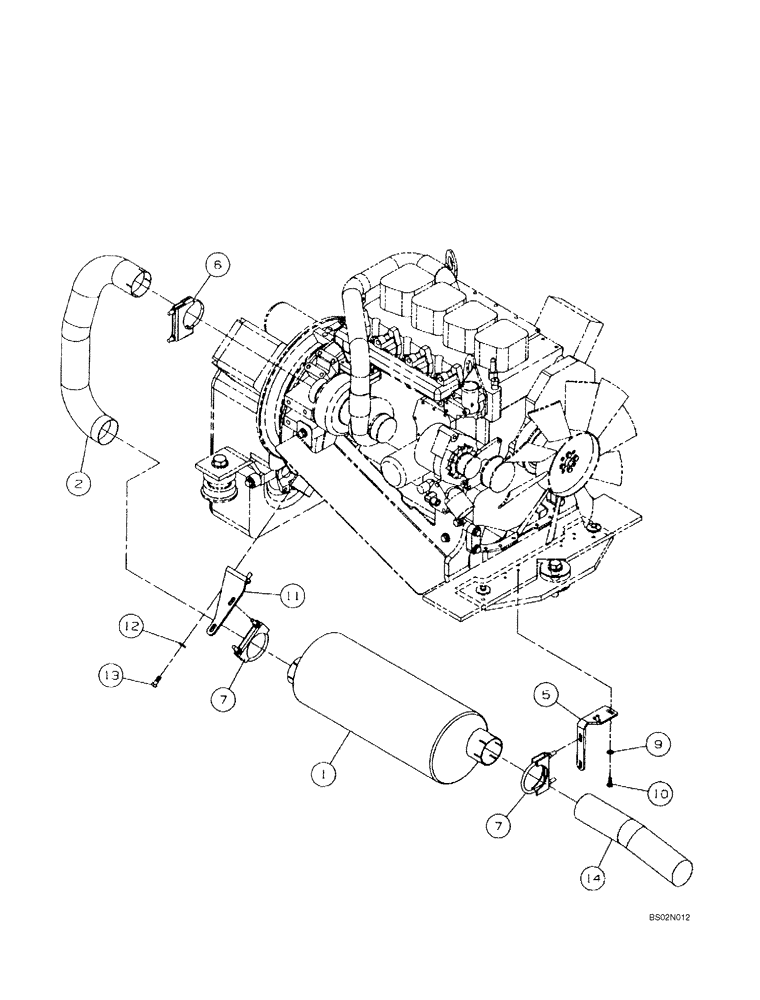

Запчасти Case 686G (2-09) - EXHAUST SYSTEM - TURBOCHARGED ENGINE (ASN 686GXR JFE0001847; 688G JFE0003612) (02) - ENGINE

1

316991A1

MUFFLER

1шт.

2

449996A1

EXHAUST SYSTEM PIPE

1шт.

5

449997A1

BRACKET

1шт.

6

326799A1

CLAMP

1шт.

7

359692A1

CLAMP

3шт.

9

449998A1

WASHER

3шт.

10

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

3шт.

11

449999A1

MOUNTING PLATE

Muffler

1шт.

12

495-21038

WASHER,5/16"

2шт.

13

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

14

450000A1

EXHAUST SYSTEM PIPE

1шт.
