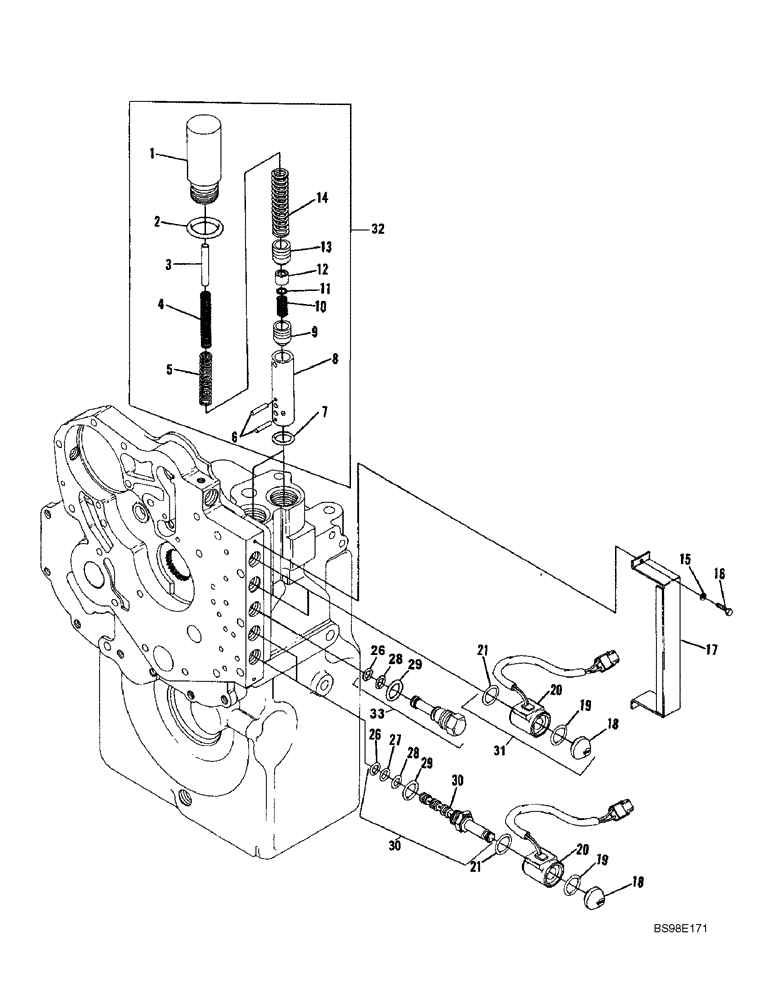

Запчасти Case 686G (6-46) - TRANSMISSION, MODULATOR VALVES AND SOLENOID CARTRIDGES (06) - POWER TRAIN

316219A1

TRANSMISSION

Complete

1шт.

For Models With Naturally Aspirated Engine

1шт.

Parts List On Figures 6-26 - 6-48

1шт.

317004A1

TRANSMISSION

Complete

1шт.

For Models With Turbocharged Engine

1шт.

Parts List On Figures 6-26 - 6-48

1шт.

686GXR P.I.N. JFE0001501 - JFE0001847

1шт.

688G P.I.N. JFE0003501 - JFE0003612

1шт.

449884A1

TRANSMISSION

Complete

1шт.

For Models With Turbocharged Engine

1шт.

Not Illustrated

1шт.

686GXR P.I.N. JFE0001848 And After

1шт.

688G P.I.N. JFE0003613 And After

1шт.

Component Parts Not Available At Time Of Printing

1шт.

1

317556A1

HOUSING

2шт.

2

317553A1

O-RING

2шт.

3

317558A1

PIN

2шт.

4

317559A1

SPRING

Inner

2шт.

5

317560A1

SPRING

Middle

2шт.

6

317561A1

PIN

Upper

2шт.

6

317562A1

PIN

Lower

2шт.

7

317563A1

O-RING

2шт.

8

317565A1

SLEEVE

2шт.

9

317566A1

SPOOL

Regulator

2шт.

10

317567A1

SPRING

Regulator Spool

2шт.

11

317568A1

SPACER

2шт.

12

317569A1

RETAINER

2шт.

13

317570A1

SPOOL

Accumulator

2шт.

14

317571A1

SPRING

Modulator Valve, Outer

2шт.

15

317572A1

LOCK WASHER

2шт.

16

317573A1

SCREW

2шт.

17

317574A1

COVER

1шт.

18

317576A1

NUT

4шт.

19

317577A1

O-RING

4шт.

20

317578A1

COIL

Solenoid, 12 Volt

4шт.

21

317577A1

O-RING

4шт.

26

317579A1

O-RING

5шт.

27

317580A1

O-RING

4шт.

28

317581A1

O-RING

5шт.

29

317582A1

O-RING

5шт.

30

317583A1

VALVE

4-Way

4шт.

Includes 1 Each Of Items 26 - 29 Above Plus The NSS Cartridge

1шт.

31

317584A1

SOLENOID

Spool Type

4шт.

Includes 1 Each Of Items 18 - 21 Above

1шт.

32

317585A1

VALVE

Modulator

2шт.

Includes 1 Each Of Items 1 - 14 Above

1шт.

33

317586A1

PLUG

1шт.

Includes 1 Each Of Items 26 - 29 And Above

1шт.
